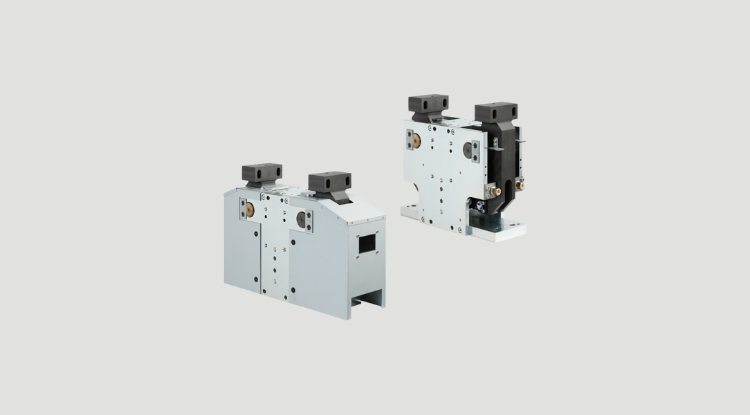

FRAME CLAMP CYLINDER STABLE CLAMP FORCE TYPE WRF100-X2814, -X2808

Frame Clamp Cylinder Stable Clamp Force Type SMC WRF100-X2814, -X2808

Technical Information

Series Bore size (mm) Stroke (mm)
WRF100-X2814 (Centering)
WRF100-X2808 (Side positioning)		 100 82.5
Specifications WRF100-X2814, -X2808
Bore size  100 mm
Stroke 82.5 mm
Fluid  Air
Proof pressure  0.8 MPa
Maximum operating pressure  0.5 MPa
Minimum operating pressure  0.2 MPa
Ambient and fluid temperatures  –10 to 60°C (No freezing)
Cushion  Clamp side : None
Unclamp side: Rubber bumper
Lubrication  Non-lube
Clamping force  18,000 N
Operating time  1.0 s or more  (Clamping operation, Unclamping operation)
Arm opening angle  24° (12° each side)
Weight T-type clamp arm: 52 kg
S-type clamp arm: 51 kg
