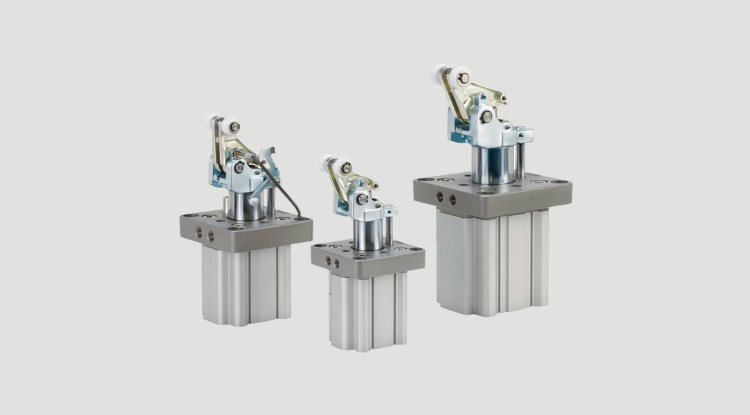

HEAVY DUTY STOPPER CYLINDER SMC RS2H

Heavy Duty Stopper Cylinder RS2H bore size: 50ø, 63ø, 80ø

Technical Information

Type Series Action Bore size（mm）
Flange RS2H Double acting
Double acting with spring
Single acting, spring extend		 50，63，80
Specifications RS2H
Bore size (mm) 50 63 80
Action Double acting, Double acting spring type, Single acting/spring extend
Rod end configuration Lever with built-in shock absorber
Fluid Air
Proof pressure 1.5 MPa
Max. operating pressure 1.0 MPa
Ambient and fluid temperature –10 to 60°C (No freezing)
Lubrication Not required (non-lube)
Cushion Rubber bumper
Stroke length tolerance +1.4
0
Mounting Flange
Port size (Rc, NPT, G) 1/8 1/4 1/4
