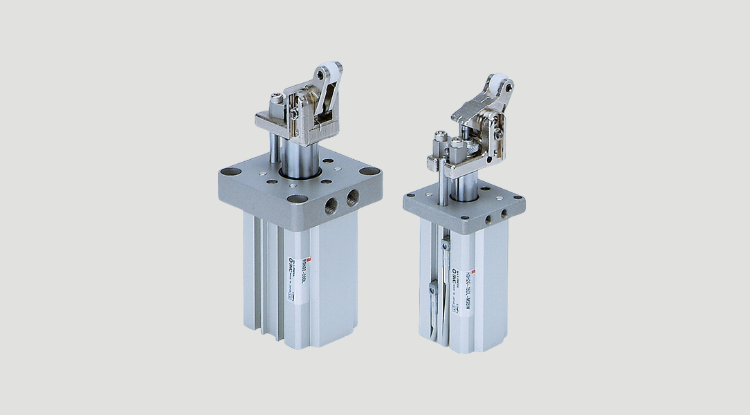

HEAVY DUTY STOPPER CYLINDER SMC RSH

Heavy Duty Stopper Cylinder RSH bore size: 20ø, 32ø

Technical Information

Type Series Action Bore size（mm）
Flange RSH Double acting
Double acting with spring
Single acting, spring extend		 20, 32
Specifications RSH
Bore size (mm) 20 32
Action Double acting, Double acting spring type, Single acting/spring extend
Rod end configuration Lever with built-in shock absorber
Fluid Air
Proof pressure 1.5 MPa
Max. operating pressure 1.0 MPa
Ambient and fluid temperature –10 to 60°C (No freezing)
Lubrication Not required (non-lube)
Cushion Rubber bumper
Stroke length tolerance +1.4
0
Mounting Flange
Port size (Rc, NPT, G)


 M5 x 0.8
 1/8
-
 1/8
-
 1/8
