HIGH PRECISION STROKE READING CYLINDER SMC CEP1

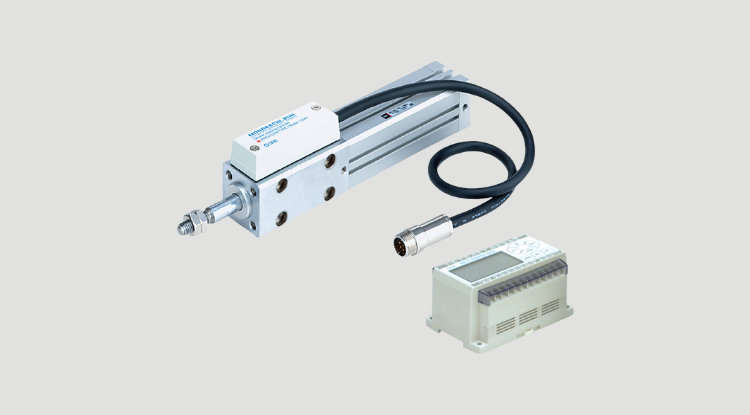

High Precision Stroke Reading Cylinder Non-rotating Piston Type CEP1 Series bore size: ø12, ø20

Technical Information

Series Action Bore size（mm） Applicable counter
CEP1 Double acting 12，20 CEU5
Specifications  CEP1
Action Double acting, Single rod (Non-rotating piston)
Fluid Air
Proof pressure 1.5 MPa
Maximum operating pressure 1.0 MPa
Minimum operating pressure ø12 ø20
0.15 MPa 0.1 MPa
Piston speed 50 to 300 mm/s
Ambient and fluid temperature 0 to 60°C (No freezing)
Lubrication Non-lube
Stroke length tolerance range 0 to +1.0 mm
Cushion Without
Rod non-rotating accuracy ø12 ø20
±2° ±3°
Mounting Direct mounting rod side tapped type (Standard), Foot type, Rod side flange type
