Printer for very small labels

PRINTER FOR VERY SMALL LABELS - SATO HR2

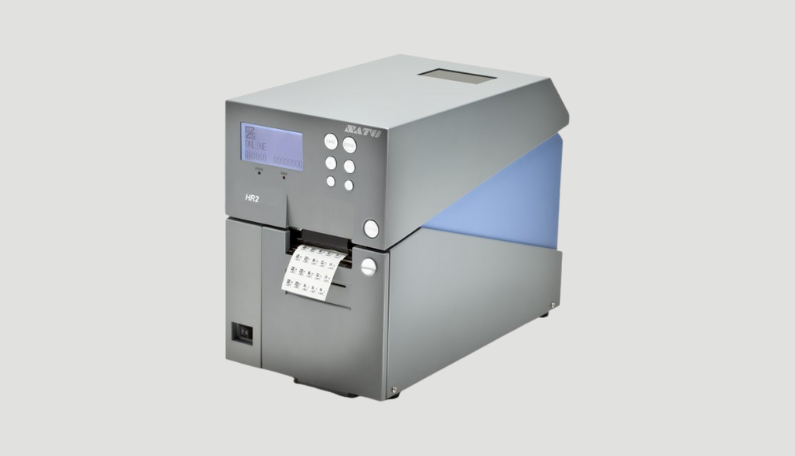

Printer SATO HR2 - high print accuracy and resolution for very small labels

PRINTER FOR VERY SMALL LABELS - SATO HR2

This 2-inch thermal transfer printer provides high printing accuracy and resolution making it highly suitable for printing on ultra-small labels, using in the automatic, manufacturing industry and making meter tracking labels, etc.

High precision printing: Suitable for printing on very small labels.

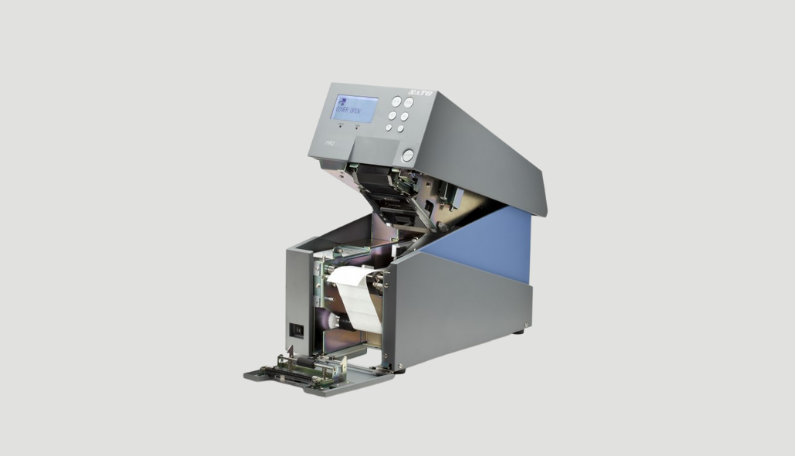

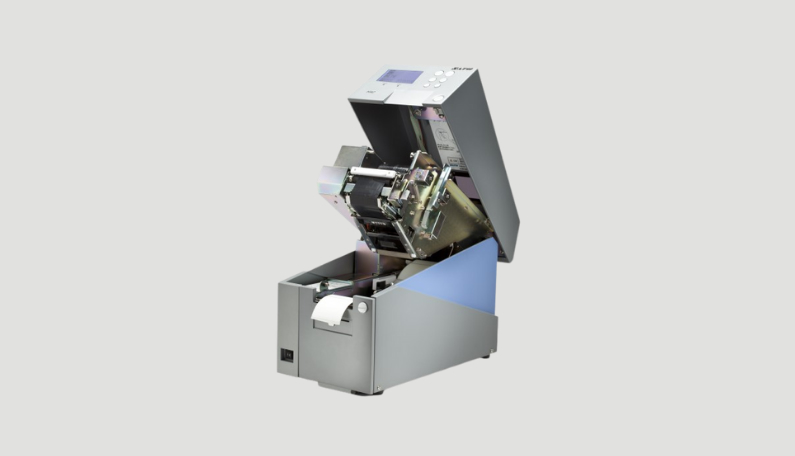

Easy media loading: Label and ribbon compartments are uniquely designed at the top of the printer for easy access and loading.

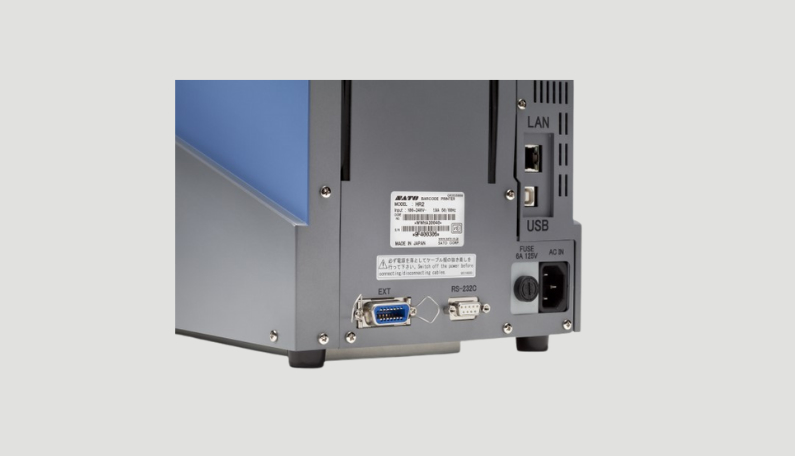

Multiple standard interfaces: LAN, USB, RS-232C and EXT Port are integrated at the rear side of the printer.

download Request a quotation

Technical Information

Constructed with heavy-duty metallic casing, the HR2 printer is fit for use in demanding industrial environments that have space constraints.

Integrated Dispenser with Internal Liner Rewinder offers convenience by allowing user to be able to dispense the label (without the backing liner) and rewind the backing material from the dispensed labels at the same time automatically after every print.

Printing Specification		HR2
Printing Method		Thermal Transfer
Print Resolution		HR212: 12dots/mm (305 dpi) HR224: 24 dots/mm (609 dpi)
Print Speed		1-4 ips (25-100 mm/sec)
Print Area	Width (mm/inch)	56mm (2.2")
	Length (mm/inch)	200mm (7.9")
Processor		32 bit RISC
Printer Memory	Flash ROM	32MB
	SDRAM	16MB
	External (SD card)	Up to 2GB
