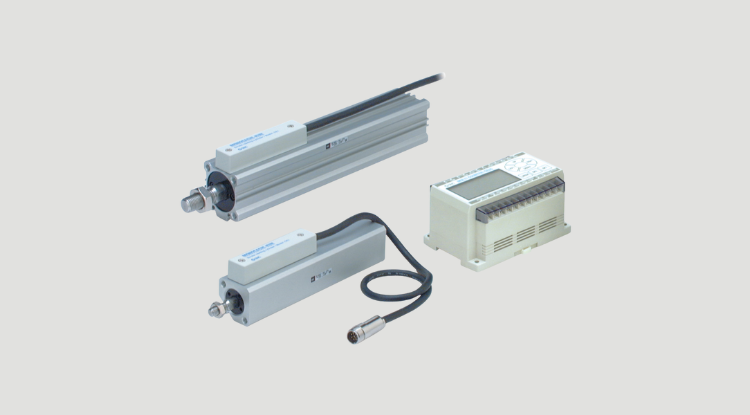

STROKE READING CYLINDER SMC CE1

Stroke Reading Cylinder CE1 Series Bore size: ø12, ø20, ø32, ø40, ø50, ø63

Technical Information

Series Action Bore size（mm） Applicable counter
CEP1 Double acting 12, 20, 32, 40, 50, 63 CEU5
Specifications  CE1
Fluid Air
Proof pressure 1.5 MPa
Maximum operating pressure 1.0 MPa
Minimum operating pressure ø12 ø20
0.15 MPa 0.1 MPa
Piston speed 70 to 500 mm/s
Ambient and fluid temperature 0 to 60°C (No freezing)
Humidity 25 to 85% RH (No condensation)
Lubrication Non-lube
Stroke length tolerance range ø12, ø20: +1.0 mm ø32, ø40, ø50, ø63 +1.4mm
Cushion ø12, ø20, ø32····None ø40, ø50, ø63····With
Rod non-rotating accuracy ø12: ±2°, ø20: ±1, ø32, ø40, ø50, ø63: ±0.8°
Mounting Both ends tapped type (Standard), Foot type, Flange type, Double clevis type
Auto switch
 Reed type, Solid state type
