Tension & compression load cell unipulse uis (with male screws on both ends)

TENSION & COMPRESSION LOAD CELL UNIPULSE UIS (WITH MALE SCREWS ON BOTH ENDS)

Tension and compression load cell Unipulse UIS - Easy-to-install threaded-type with male screws

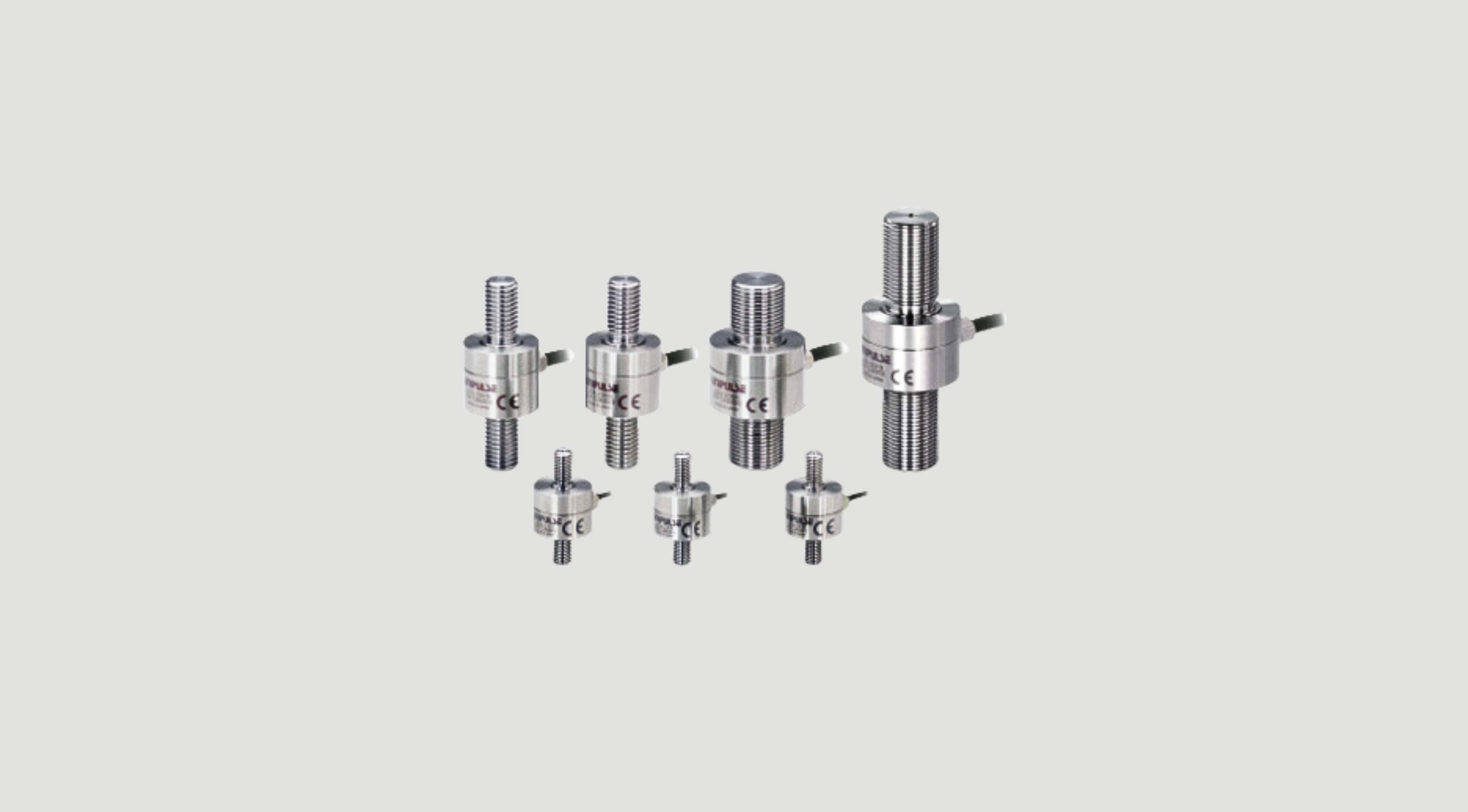

Model: UIS-1KN, UIS-2KN, UIS-5KN, UIS-10KN, UIS-20KN, UIS-50KN, UIS-50KN-S

Hardly any interference from torsion & less impact on accuracy due to lateral load too!
Easy-to-install threaded-type with male screws is newly released!
Capacity 1 kN, 2 kN, 5 kN, 10 kN, 20 kN, 50 kN

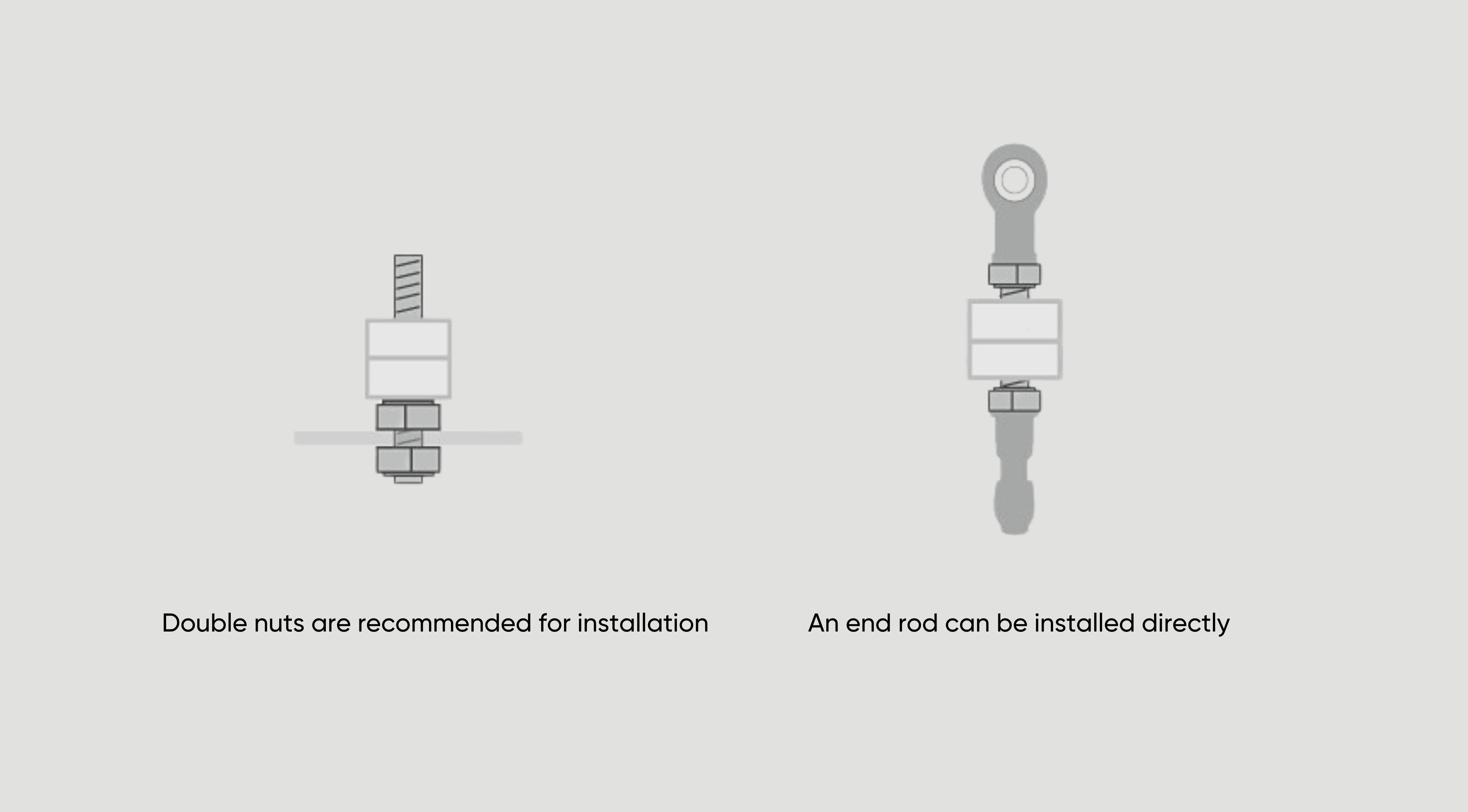

As threaded with male screws on both ends, and low-profile nuts come with, it’s easy to mount by double nut
Measure both tension & compression load

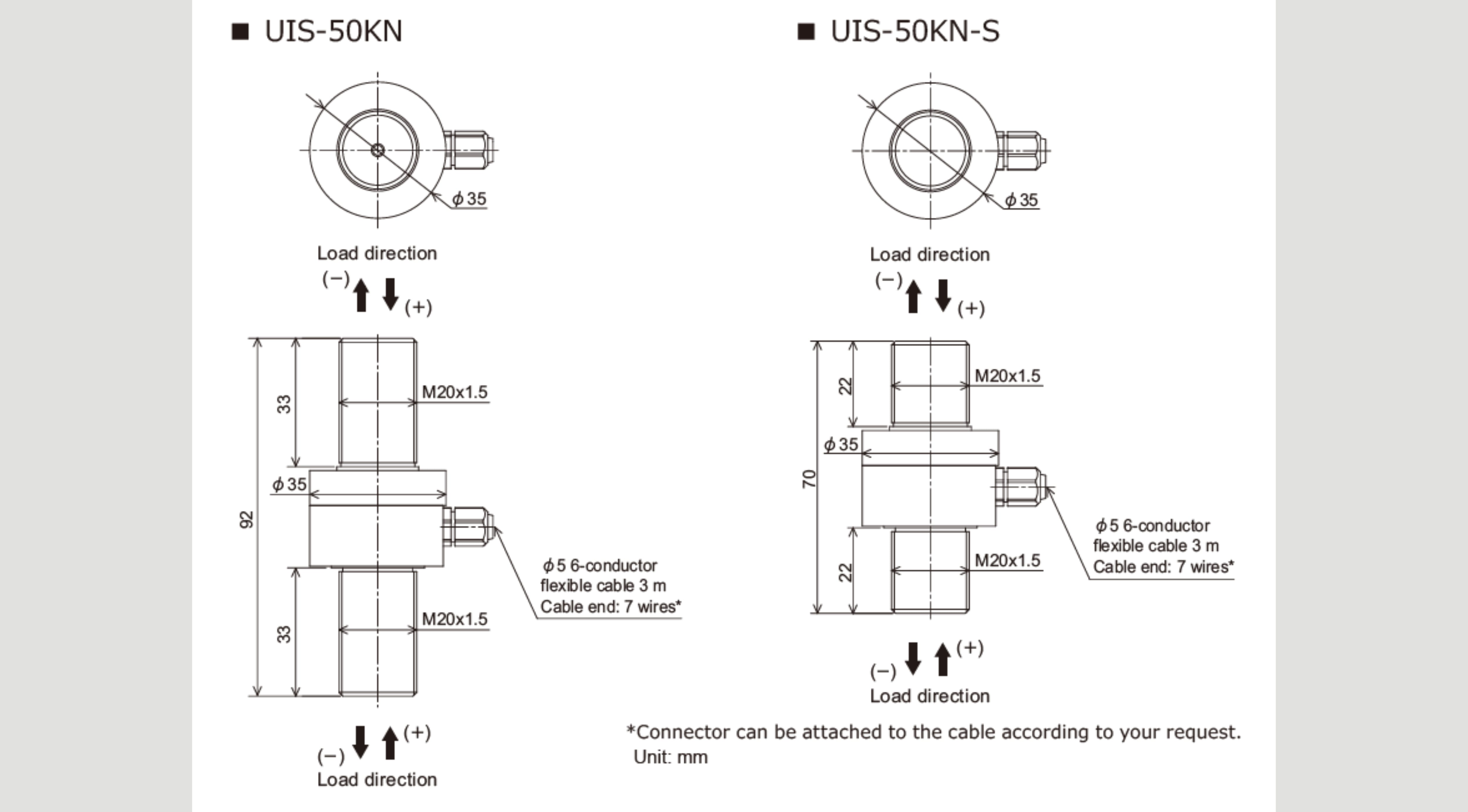

The height is short as 40 to 92 mm; this load cell does not block other equipment (1 to 5kN: 40 mm, 10 to 20kN: 70 mm, 50kN-S：70 mm, 50kN：92 mm)

Model	UIS-1KN	UIS-2KN	UIS-5KN	UIS-10KN	UIS-20KN	UIS-50KN	UIS-50KN-S
Rated capacity	1 kN	2 kN	5 kN	10 kN	20 kN	50 kN	50 kN
Rated output	Approx. 1.0 mV/V
Safe overload	300% R.C.
Zero balance	±10% R.O.
Non-linearity	0.2% or less R.O.
Hysteresis	0.2% or less R.O.
Repeatability	0.1% or less R.O.
Compensated temperature range	-10 to +60℃
Safe temperature range	-20 to +70℃
Temperature effect on zero	0.5% R.O./10℃ or below
Temperature effect on span	0.5% R.O./10℃ or below
Input resistance	Approx. 1000 Ω
Output resistance	Approx. 1000 Ω
Recommended excitation voltage	5 V
Maximum excitation voltage	7.5 V
Insulation resistance (DC 50 V)	1000 MΩ or more

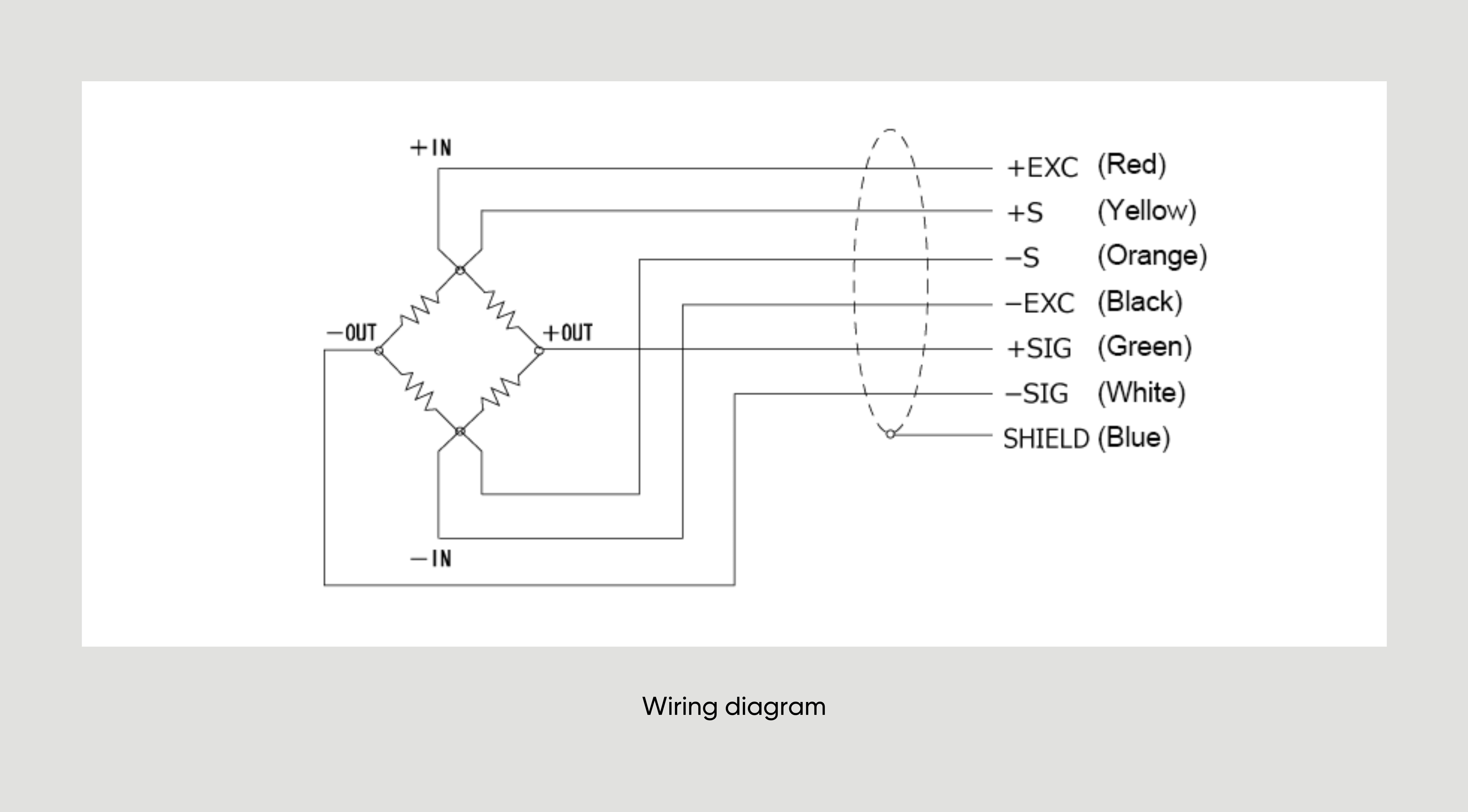

Cable	φ2.5 6 conductor flexible cable (3 m) Cable end: 7 wires
Load cell material	Stainless steel
Deflection at rated	0.015 mm	0.014 mm	0.021 mm	0.025 mm	0.040 mm	0.070 mm	0.050 mm
Natural frequency	2 kHz	3 kHz	5 kHz	15 kHz	15 kHz	13 kHz	16 kHz
Weight	Approx. 30 g			Approx. 100 g	Approx. 100 g	Approx. 260 g	Approx. 210 g
