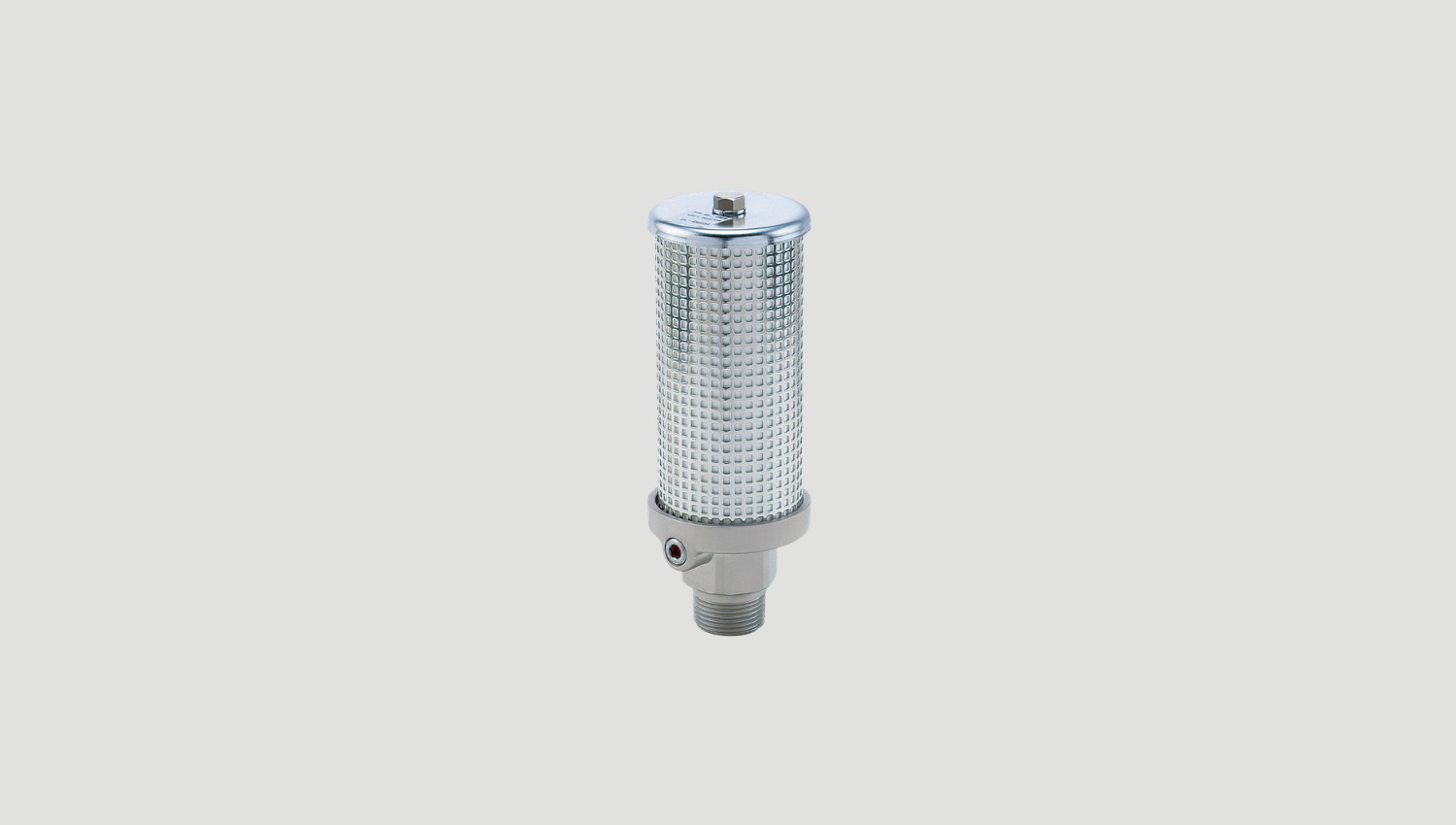

5.0 MPA SILENCER SMC VCHN

5.0 MPa Silencer SMC VCHN

Technical Information

Model VCHN3 VCHNF3 VCHN4 VCHNF4
Fluid Air
Max. operating pressure (MPa) 5.0 (Solenoid valve inlet pressure)
Relief valve unlocking pressure (MPa) 1.8
Port size R3/4 R1 R3/4 R1 R1 R1 1/4 R1 1/2 R1 R1 1/4 R1 1/2
Effective area (mm2) 200 280 160 180 280 370 370 180 320 320
Sound absorbing material effective area (Single) (mm2) 420 500
Fluid temperature (°C) 5 to 80
Ambient temperature (°C) 5 to 80
Noise reduction dB(A) 35 (Supply pressure 4.0 MPa, Back pressure 2.0 MPa)
