SILENCER BC TYPE SMC AN

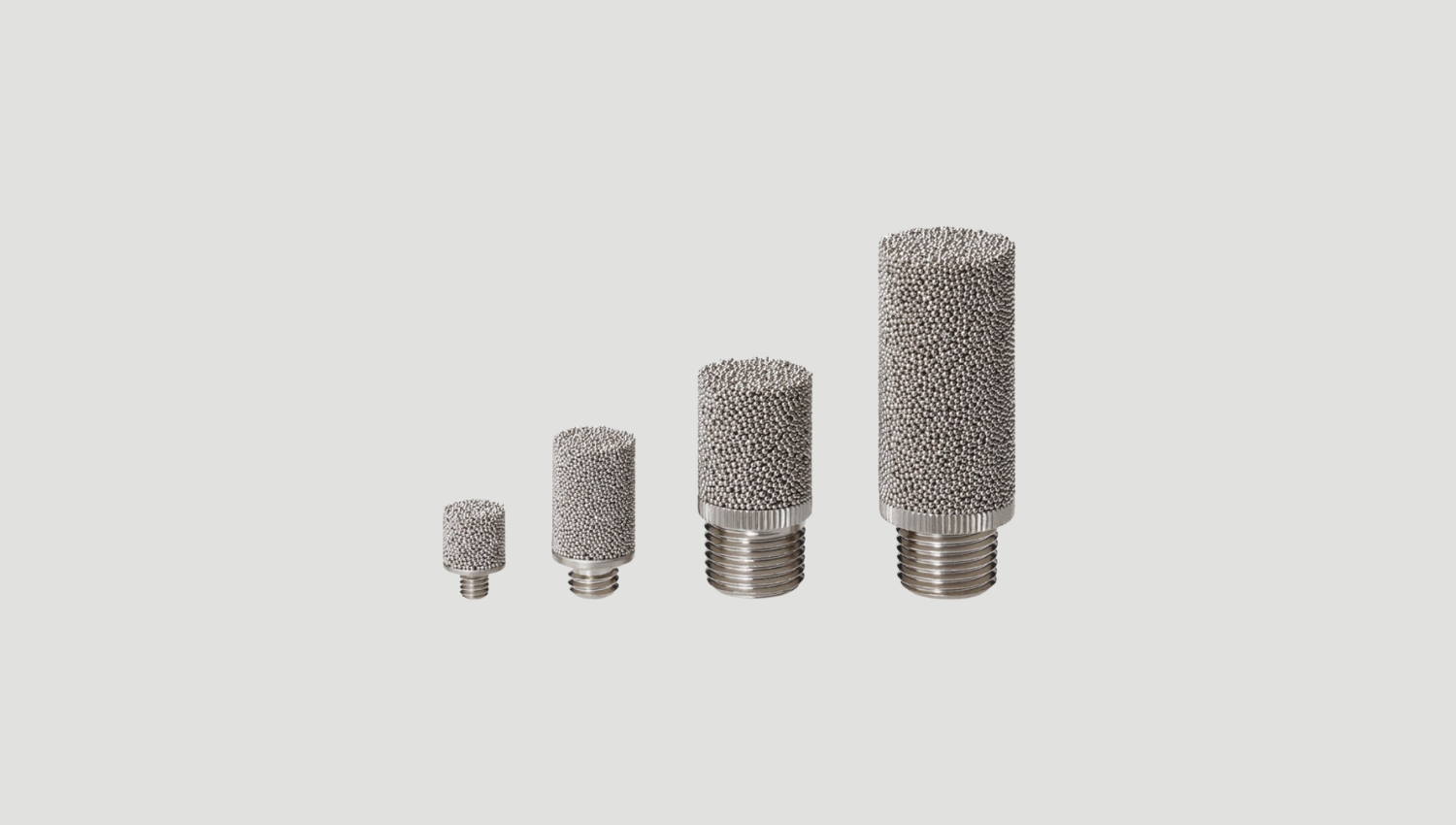

Silencer BC sintered body type SMC AN

Technical Information

Series Features
AN ・BC sintered body type
・ Noise reduction: 13, 16, 18, 21 dB (A)
Specifications AN101-01  AN110-01  AN120-M3  AN120-M5
Port size R
1/8		 R
1/8		 M3 M5
Noise reduction (dB (A) 16 21 13 18
Fluid Compressed air
Max. operating pressure 1.0 MPa
Ambient and fluid temperature 5 to 150°C
Effective area (mm2) 20 35 1 5
Sonic conductance C [dm3/(s·bar)] 4 7 0.2 1
Recommended flow (m3/min (ANR)) 1.6 or less  2.7 or less  0.08 or less  0.4 or less
Weight (G) 8.3 17 1 3.4
Dimensions (mm) A 21 34 9 15.5
B 11 13 6 8
