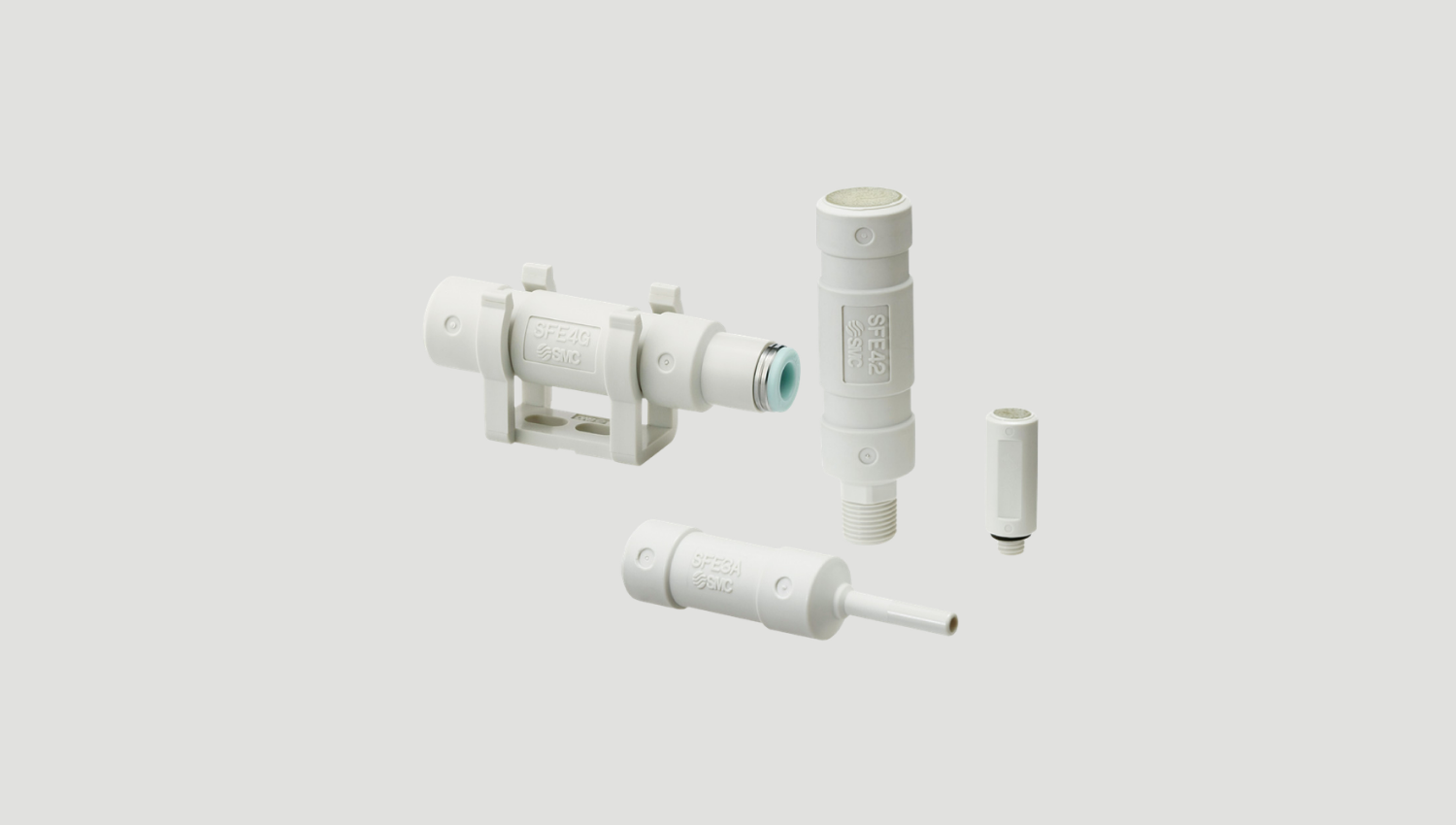

| Series | Filtration (μm) | Maximum flow capacity L/min (ANR) | Port size |
|---|---|---|---|
| SFE | 0.01 (Filtration efficiency: 99.99%) | 3，30，65，130，200 | M5 x 0.8，R1/8，R1/4 φ4，φ6，φ8，φ10 |
| Model | SFE11 | SFE3 | SFE4 | SFE5 | SFE7 | |
|---|---|---|---|---|---|---|
| Fluid | Air | |||||
| Maximum flow capacity | Up to 3 L/min (ANR) | Up to 30 L/min (ANR) | Up to 65 L/min (ANR) | Up to 130 L/min (ANR) | Up to 200 L/min (ANR) | |
| Filtration rating | 0.01 μm (Trapping efficiency 99.99%) | |||||
| Noise reduction | 30 dB (A) | |||||
| Operating temperature | 5 to 45°C | |||||
| Differential pressure proof (Maximum operating pressure) |
0.1 MPa | |||||
| Material | Body | PBT, Polyolefin, Polyurethane, PP*, Stainless steel*, EPDM (Fluoro coated | ||||
| Gasket | NBR, Stainless steel | - | ||||
| Weight | Male thread | 1 g | — | 7 g | 12 g | 17 g |
| Plug-in | — | 3 g | 6 g | 11 g | 16 g | |
| One-touch fitting | — | 5.5 g | 8 g | 16 g | 24 g | |
| Bracket weight | — | 1.2 g | 2.5 g | 3.5 g | 5.5 g | |
| Applicable tubing material (One-touch fitting type) |
— | PFA, Polyolefin, Soft polyolefin, Polyurethane | ||||
| Replacement period | · 2 years or when back pressure reached 0.1 MPa · When the system fails to operate normally due to clogging |
|||||
| Packaging | Antistatic double packaging processes | |||||
