| Model | D-MPGm | |
| Measurement range | 25 mm ±1 (Default) | |
| Power supply voltage | 13 to 30 VDC, Ripple (p-p) 10% or less (with power supply polarity protection) | |
| Current consumption | 38 mA or less (When no load is applied) | |
| Repeatability | 0.1 mm (Ambient temperature: 25°C) | |
| Resolution | 0.01 mm | |
| Linearity | ±0.6 mm (Ambient temperature: 25°C, Measurement range: 25 mm) ±1.5 mm (Ambient temperature: 25°C, Measurement range: 35 mm) |
|
| Switch output | Max. load current | 40 mA |
| Internal voltage drop | 1 V or less | |
| Leakage current | 0.1 mA or less | |
| Short-circuit protection | Yes | |
| Analog current output |
Output current | 4 to 20 mA (Default) |
| Min. load resistance | 400 Ω | |
| Analog voltage output |
Output voltage | 0 to 10 V, 1 to 5 V |
| Min. load resistance | 2 kΩ | |
| Indicator light | MR (Orange), PWR (Green), OUT1 (Orange), CURRENT (Blue), VOLTAGE (Green) |
|

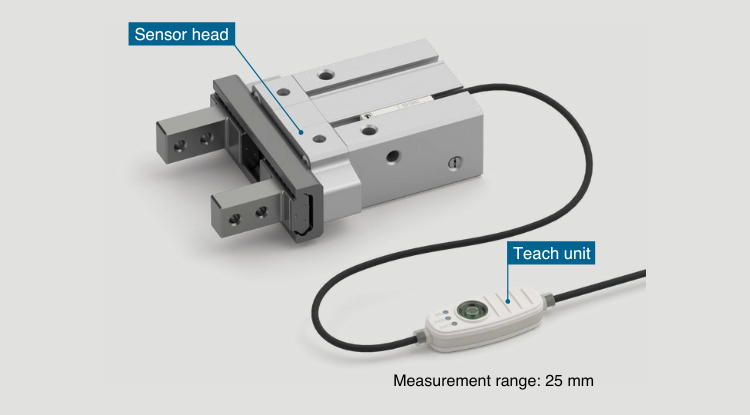

| Lead wire | PUR 4 cores Sensor head: ø2.2, Teach unit: ø2.6 0.08 mm2 |
|
| Standards | CE/UKCA marking, UL (CSA) | |
| Impact resistance | 300 m/s2 | |
| Insulation resistance | 50 MΩ or more (500 VDC measured via megohmmeter) | |
| Withstand voltage | 1000 VAC for 1 minute | |
| Ambient temperature | −10 to 60°C (When using an analog current: −10 to 50°C) | |
| Enclosure | IP67 (IEC 60529) | |
| IO-Link | Version | V1.1 |
| Communication speed | COM3 (230.4 kbps) | |
| Process data size | Input: 4 bytes, Output: 0 bytes | |
| Min. cycle time | 1 ms | |
| Device ID | 243 hex | |
| Vendor ID | 83 hex | |
