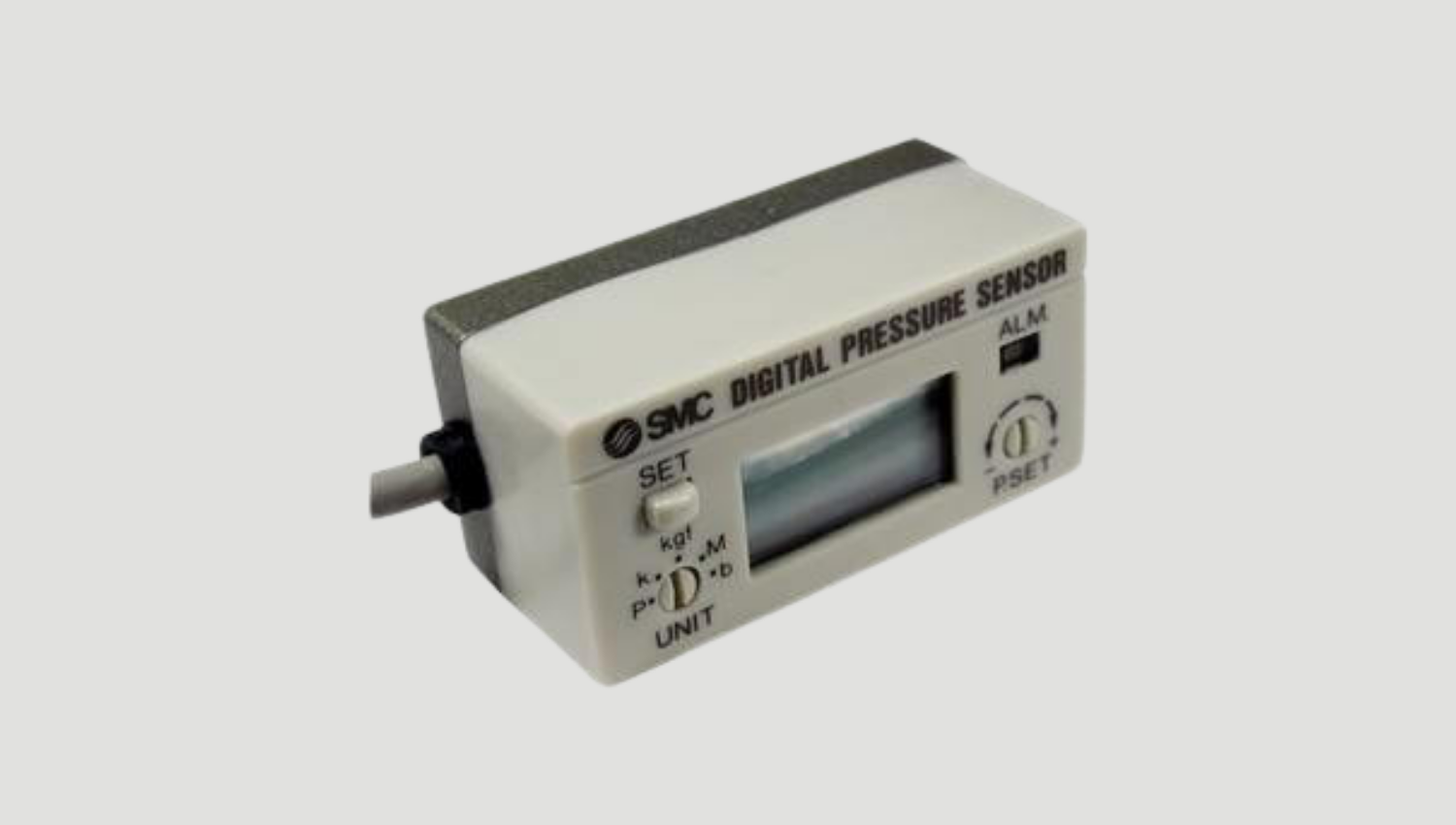

DIGITAL PRESSURE SENSOR SMC GS40

Digital Pressure Sensor SMC GS40

Technical Information

Series Set pressure (MPa)
GS40 0 to 0.98
Model GS40-M5  GS40-01  GS40-02
Fluid Air/Inert gas
Hysteresis 3% F.S. (Full span) or less
Accuracy ±3% F.S. (5 to 40°C), ±5% F.S. (–5 to 60°C)
Voltage 12 to 24 VDC (Ripple ±10% or less)
Output Open collector 30V, 80 mA or less
Operating display Light turns ON when pressure drops below the set minimum.
Current consumption 15 mA (24 VDC when ON) or less
Max. operating pressure 0.98 MPa
Operating temperature range –5 to 60°C (No freezing)
Sampling frequency 4 Hz
Bracket 15501 - -
Port size M5 x 0.8 (Female thread) R 1/8 R 1/4
Weight (g) 42 54 57
