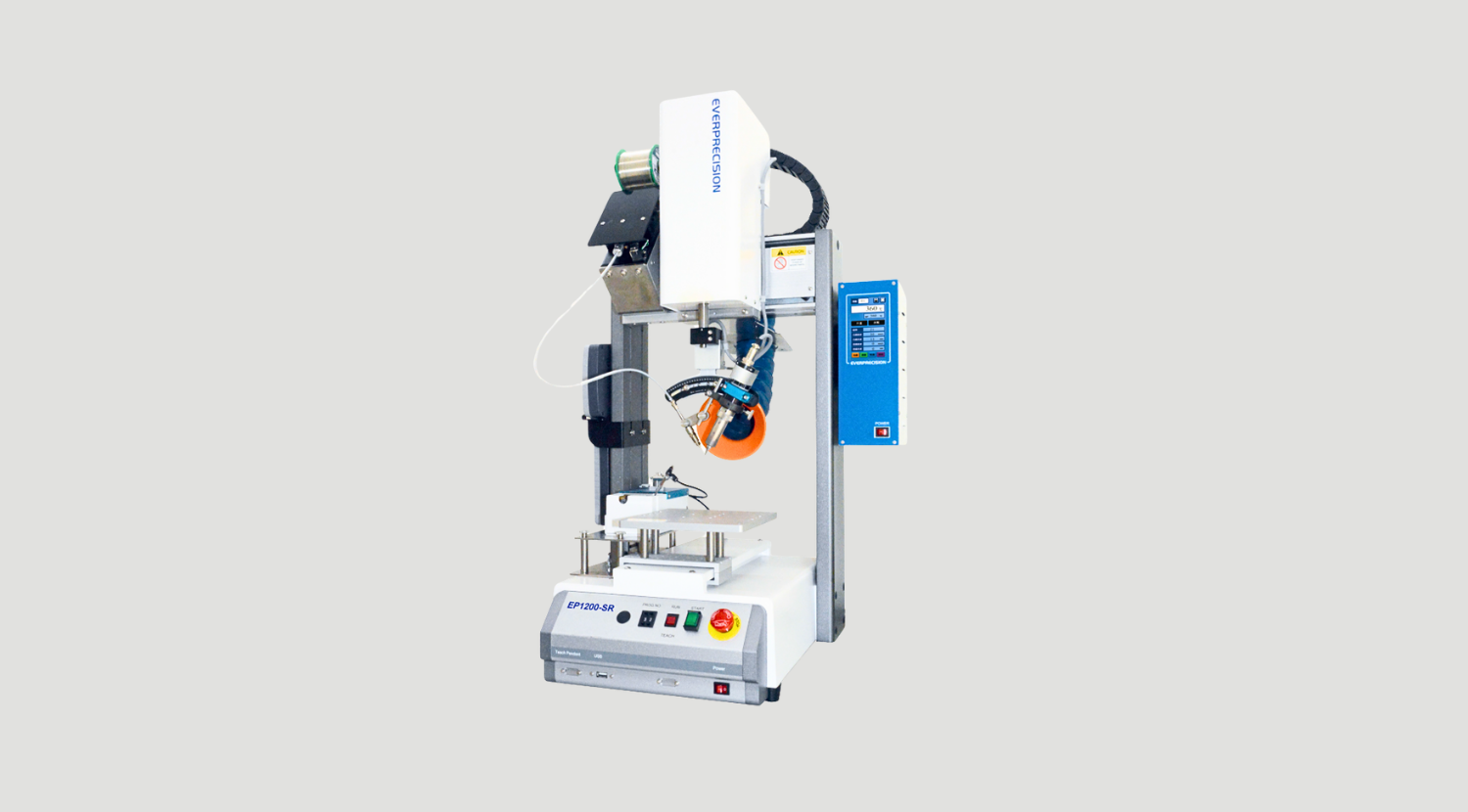

| EP1200-SR | EP1400-SR | |
| Moving Area (X/Y/Z/R) | 200 / 200 / 100 mm / ±360° | 400 / 400 / 100 mm /±360° |
| Max. Speed |
XY/Z：400 / 250 mm/sec R : 720°/sec |
XY/Z：400 / 320 mm/sec R : 720°/sec |
| Data Memory capacity |
9999 points/prog. 100 programs |
|
| Display | Teach Pendant LCD | |
| Teaching Method | Teach Pendant | |
| Temp.Control Power | 150 W (Optional: 200W; 280W) | |
| Solder Feeder System | Stepping Motor | |
| Air Pressure | 5~7 kg/cm² | |
| Working Temp. | 10-40°C | |
| Dimensions WxDxH | 586 x 445 x 851 mm | 791 x 645 x 861 mm |
| Working Area (X/Y) | 150 / 200mm | 365/ 400 mm |
| Repeatability | +/- 0.01 mm/ Axis | |
| Program System | CF Card / USB | |
| Drive System/ Stepping Motor | Micro Stepping Motor | |
| Max. Temperature | Max. 460°C | |
| Solder Wire Diameters | ø 0.4 ~ 1.2 mm | |
| Clean System | Air/ Brush | |
| Power Supply | 100V~230V/450W | |
| Working Humidity | 20-85% no condensation | |
| Weight | 37 kg | 59.5 kg |
