| Model | MCR-H270R/U | MCR-H270R-H/U-H |
| Case Material | PC+TPU | |
| Cable | Straight 2.0m | |
| Connector | RJ-45 phone jack connector | |
| Interface | RS-232,or USB Keyboard, USB virtual COM | |
| Indicator | Beeper and LED | |
| Trigger mode | Hand-held, Auto-Detect | |
| Input Voltage | 5±0.25 V | |
| Current | Standby:160mA, Working:300mA(MAX:480mA) | |
| Image Size | 1280 × 800 pixels | |

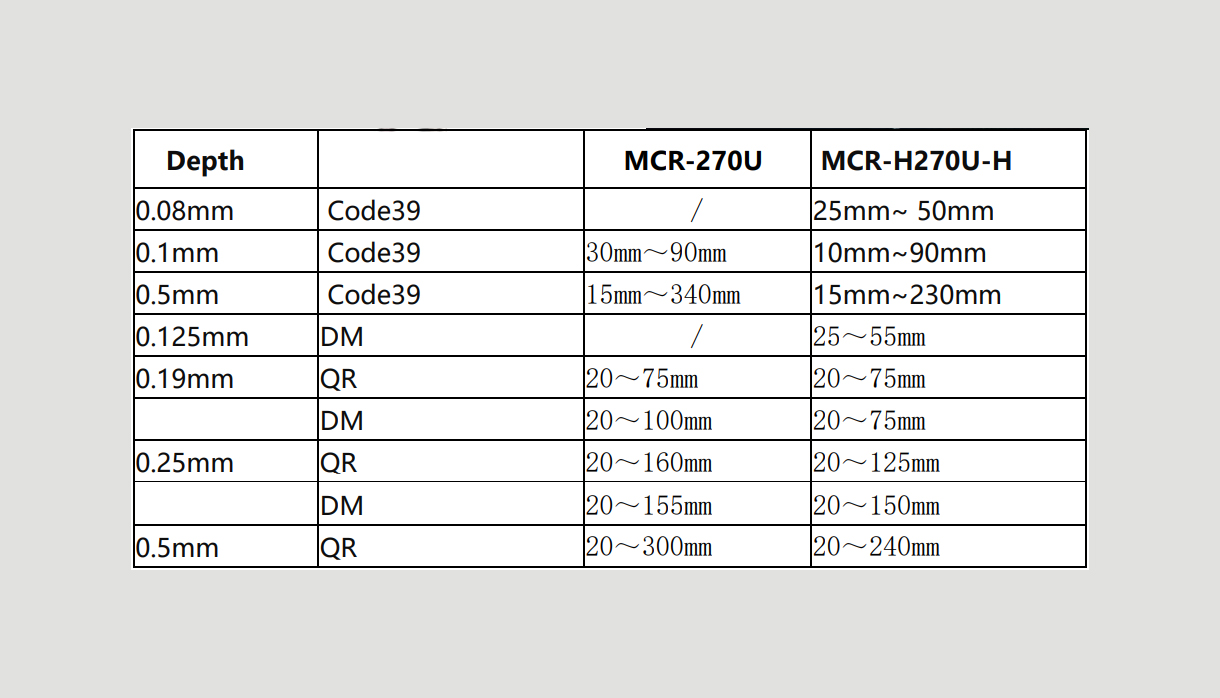

| Min Resolution |
1D: 0.1mm 2D: 0.19mm |
1D: 0.08mm 2D: 0.125mm |
| Light Source | Illumination:5000K,white LED; Aiming:525nm peak wave length, green LED |
|
| Scanning Angle | ±70°，±75°，360°（Skew, Pitch, Roll） | |
| Decoding Capability | 2D:DataMatrix(ECC200), PDF417, QR Code, MicroQR, MicroPDF, , Customer barcode (optional) |
|
| 1D:JAN/EAN/UPC, ITF, Codabar, Code39, Code93, Code128, EAN128, GS1 Data Bar |
||
| Temperature | Operating:-20°C to 50°C; Storage-20°C to70°C | |
| Sealing | IP52 | |
| Drop Resistance | Withstands multiple 2.0 m drops to concrete | |
| Dimensions | 90 mm×62.8 mm×153 mm | |
| Weight | 132 g (without cable) | |
