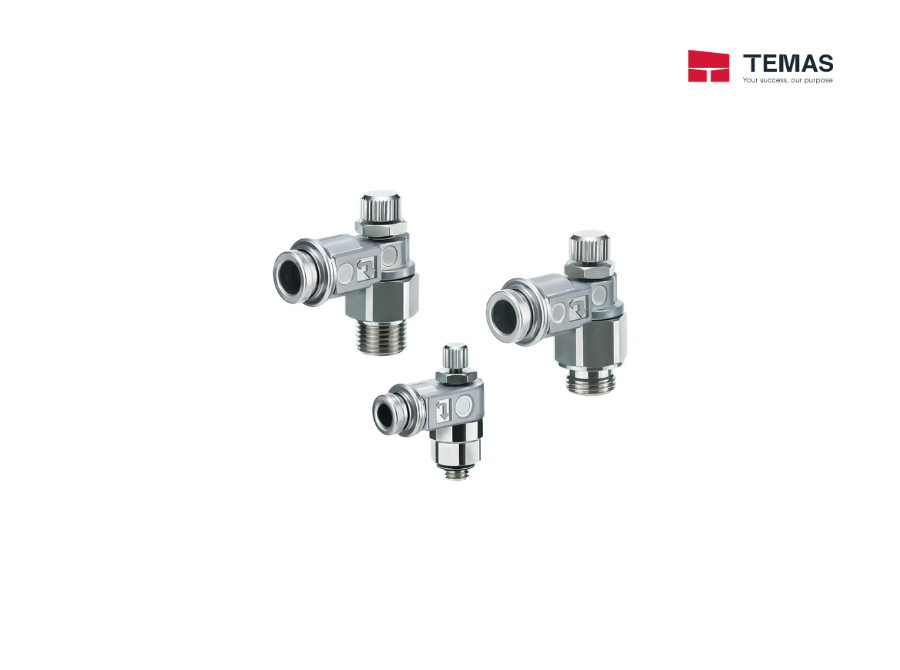

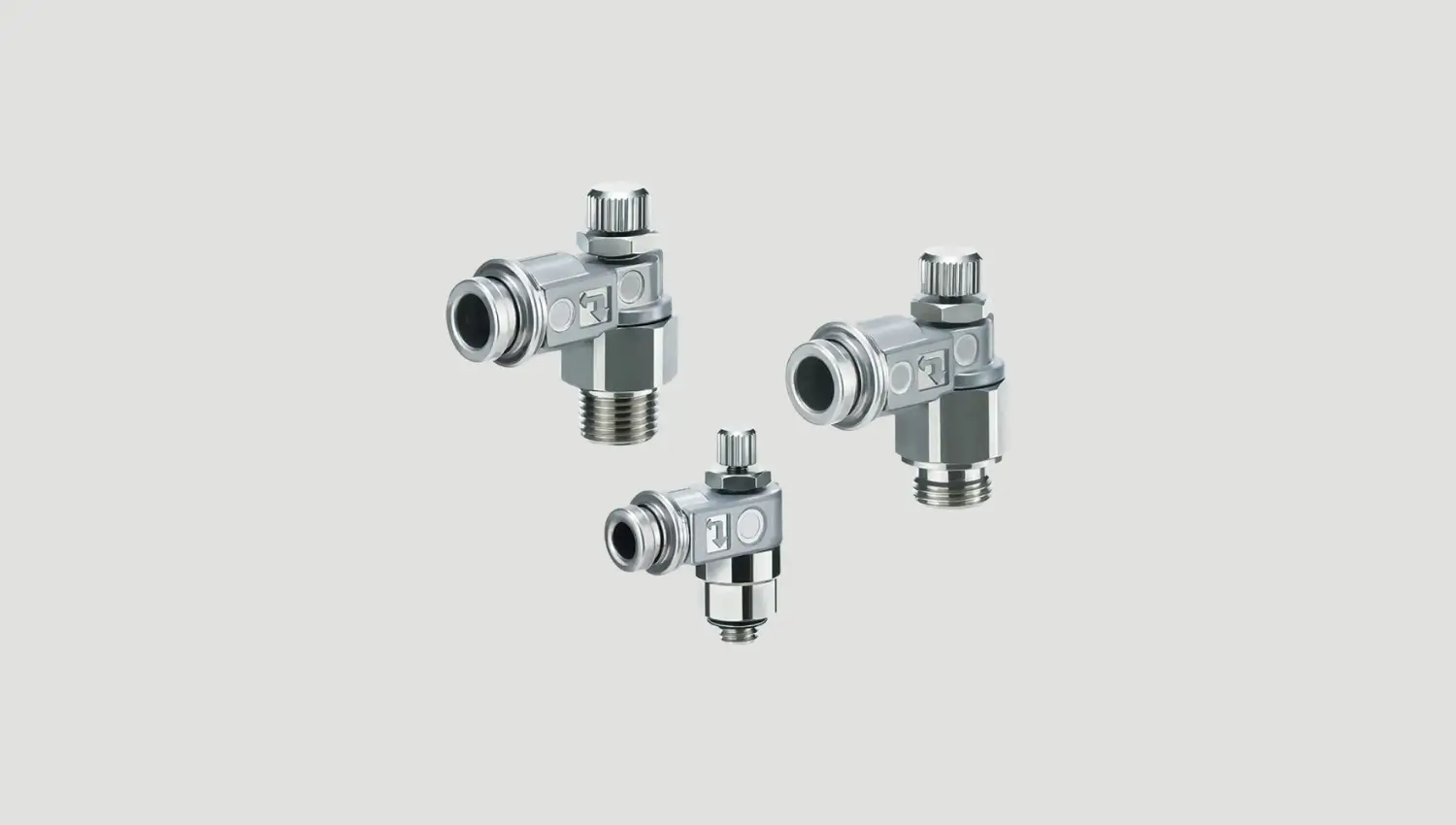

METAL SPEED CONTROLLER WITH ONE-TOUCH FITTING SMC ASB

Metal Speed Controller with One-touch Fitting SMC ASB

Technical Information

Type Series Port size on the
cylinder side		 Applicable tubing O.D. Metric size Applicable tubing O.D. Inch size
All metal exterior elbow type ASB M5×0.8
10-32UNF
R,G,NPT 1/8 to 1/2		 φ4 to φ12 φ5/32'' to φ1/2''
ASB
Fluid Air
Proof pressure 1.5 MPa
Max. operating pressure 1 MPa
Min. operating pressure 0.1 MPa
Ambient and fluid temperatures -5 to 60°C (No freezing)
Applicable tubing material FEP, PFA, Nylon, Soft nylon,
Polyurethane, Polyolefin
