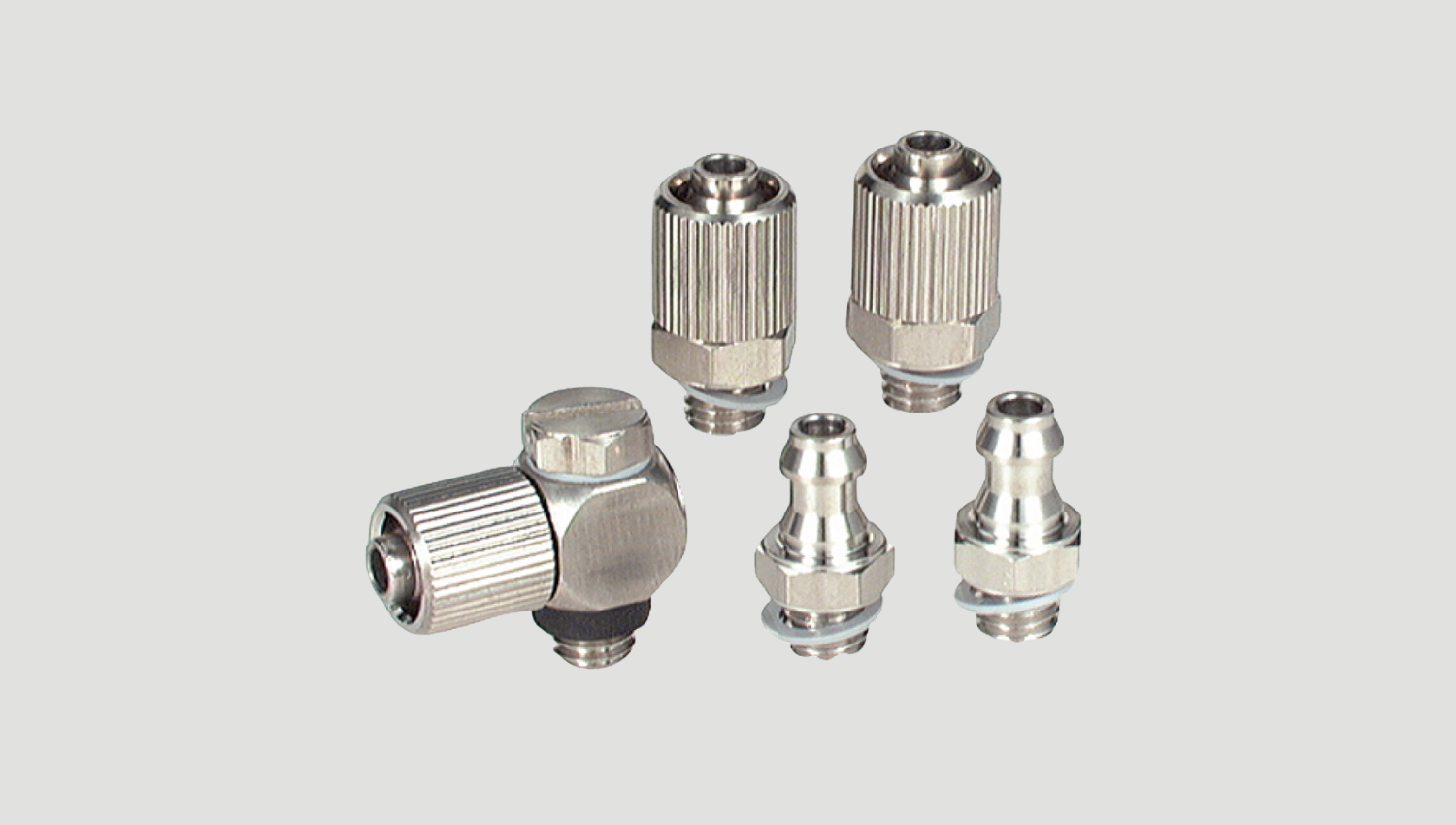

| Series | Applicable tubing O.D. | Connection thread |
|---|---|---|
| MS | φ3.2，φ4，φ6 | M5 |
| Specifications | MS | |||||||
|---|---|---|---|---|---|---|---|---|
| Applicable tubing material |
Nylon | Soft nylon | Polyurethane | PFA | FEP | Modified PTFE |
Wear resistant polyurethane |
|
| Applicable tubing O.D./I.D. | ø4/ø2.5 ø6/ø4 |
ø3.18/ø2.18 | ø4/ø2.5 ø6/ø4 |
ø3.18/ø2 ø4/ø2.5 ø6/ø4 |
ø4/ø2.5 ø6/ø4 |
ø4/ø2.5 ø6/ø4 |
ø4/ø2.5 ø6/ø4 |
ø4/ø2.5 ø6/ø4 |
| Fluid | Air, N2, Water | |||||||
| Maximum operating pressure (at 20°C) | 1.5 MPa | 1 MPa | 0.8 MPa | 1 MPa | 1.5 MPa | 1.4 MPa | 0.8 MPa | |
| Ambient and fluid temperature | –5 to 60°C, Water: 0 to 40°C (No freezing) | |||||||
| Connection size | M5, R1/8 | M5 | ||||||
| Thread | JIS B0205 (Metric fine thread) JIS B0203 (Taper thread for piping) |
JIS B0205, Class 2 (Metric fine thread) |
||||||
