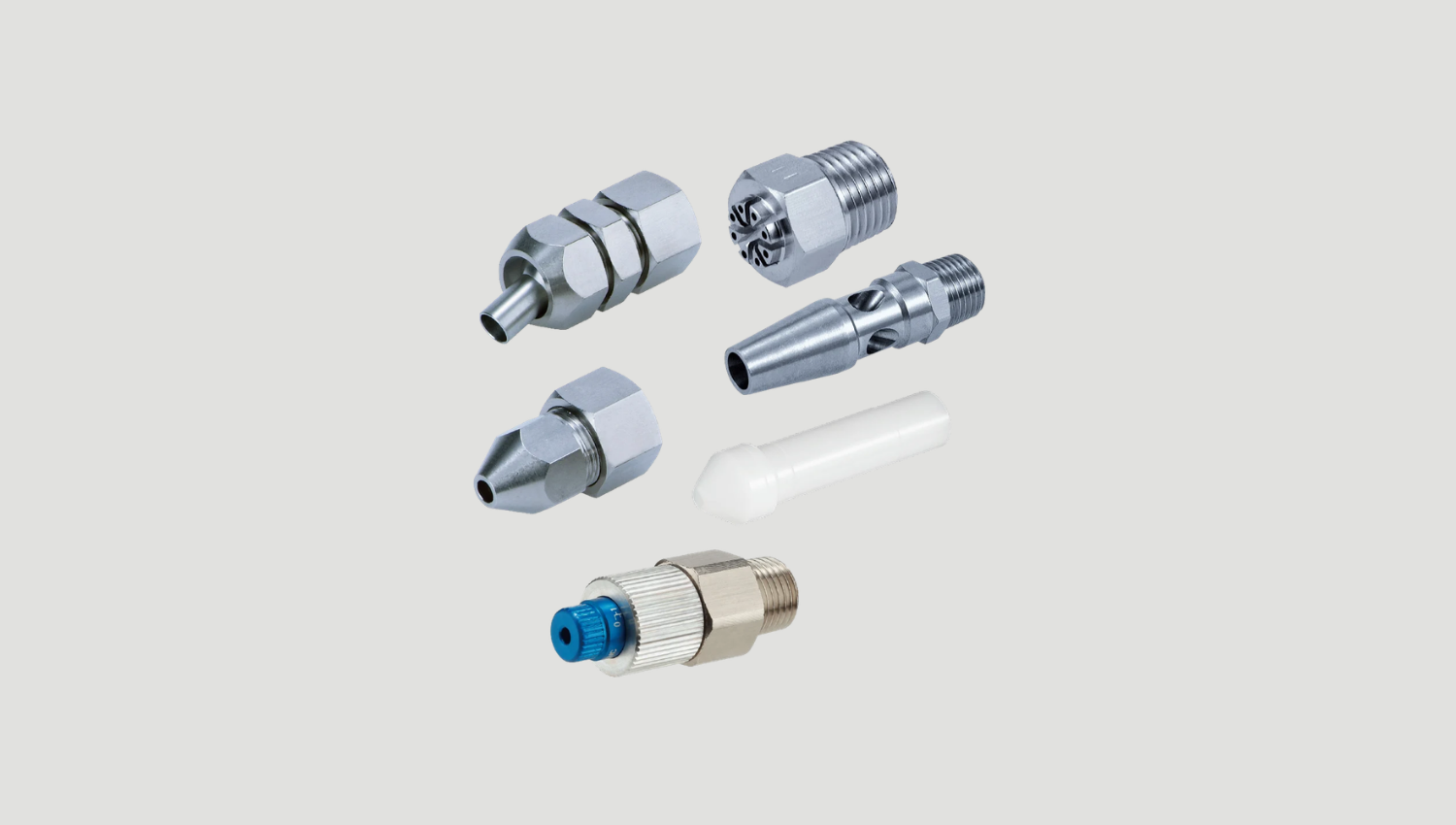

NOZZLES FOR BLOWING SMC KN

Nozzles for Blowing SMC KN

Technical Information

Series Port size Operating pressure range
（MPa）		 Effective area
（mm2）		 Nozzle port size
VMG Rc，NPT，G
1/4，3/8		 0 to 1.0 30 Rc1/4
Specifications KN
Applicable tubing material Nylon, Soft nylon, Flexible copper pipe (C1220T-O), OST pipe
Applicable tubing O.D. ø4, ø6, ø8, ø10, ø12, ø16, ø20
Fluid Air, Coolant∗1
Max. operating pressure 1 MPa (0.3 MPa with OST pipe)
Ambient and fluid temperatures -5 to 60°C (No freezing)
Threads  Mounting JIS B 0203 (Taper threads for piping)
 Nut JIS B 0205 (Metric fine thread)
Seal on the threads None
Copper-free (Standard) Brass parts are all electroless nickel plated.
