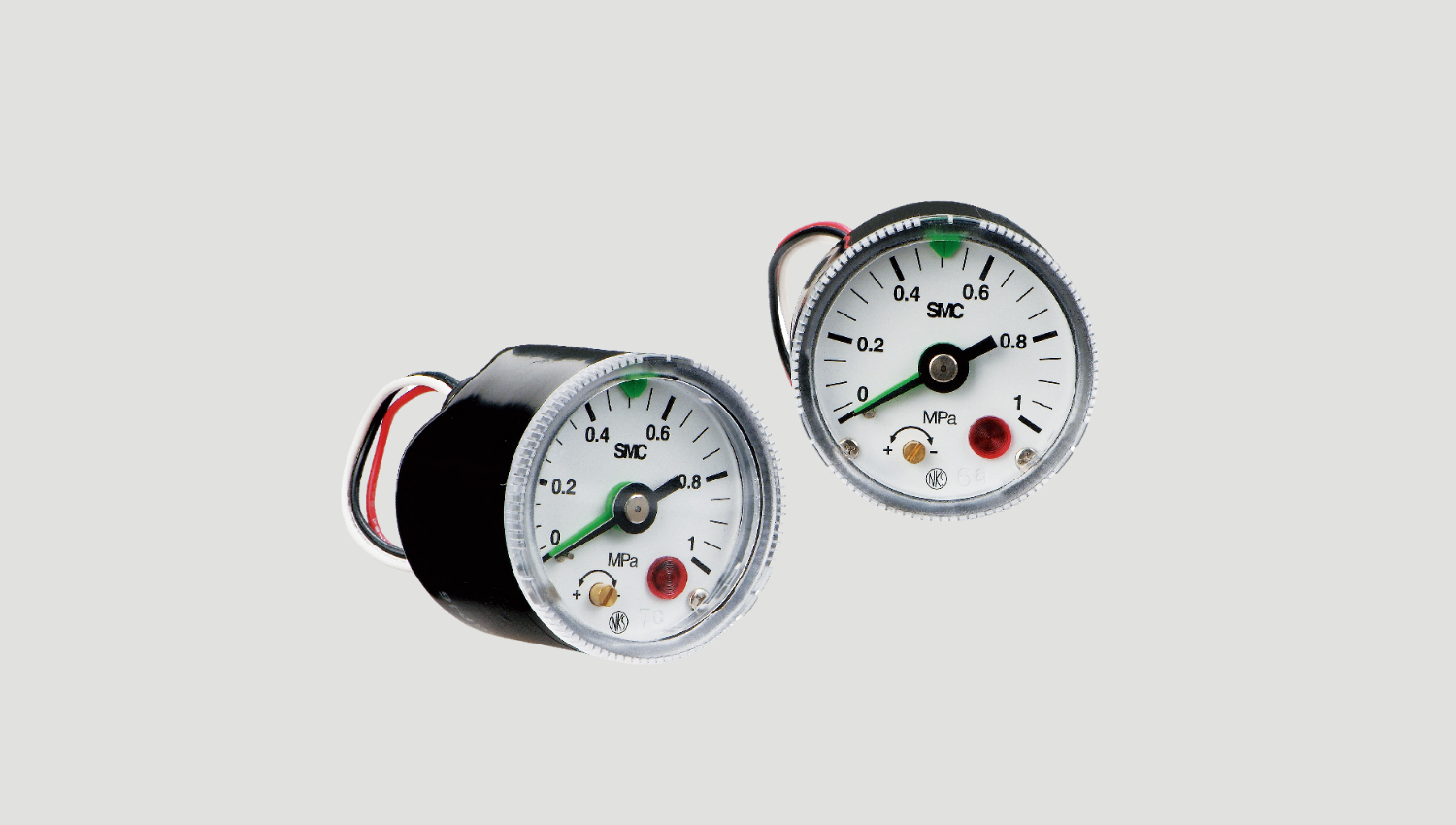

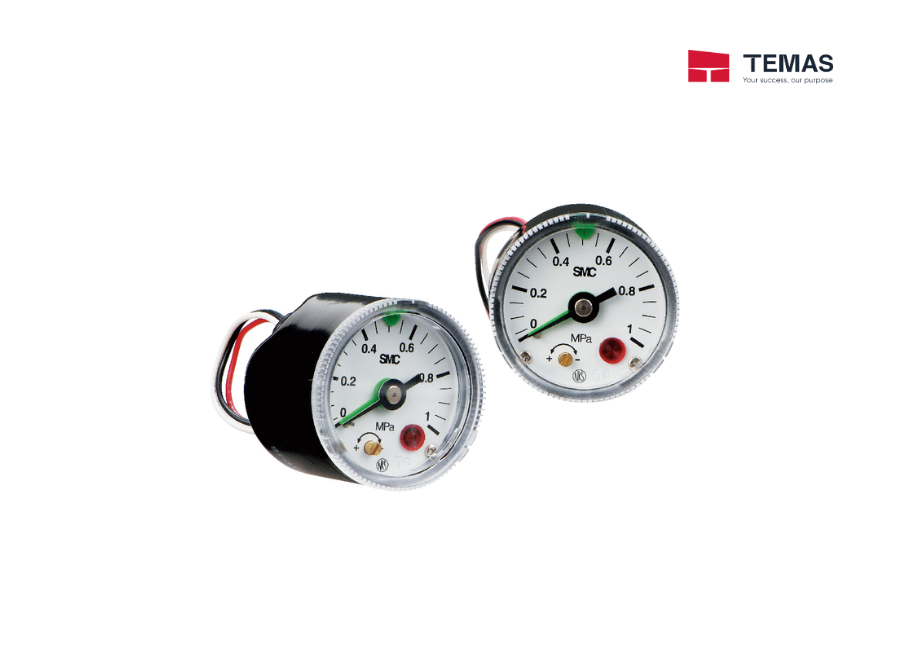

| Series | Size (O.D.) | Connection thread |
|---|---|---|
| GP46 | φ42.5 | R1/8，1/4 |
| Model | GP46 | ||
|---|---|---|---|
| Gauge | Type | Back side thread | |
| Ambient and fluid temperature | –5 to 60°C (No freezing) | ||
| Indicated pressure range | 0 to 1.0 MPa | ||
| Port size | R 1/8, R 1/4 (Option M: with M5 female thread) | ||
| Fluid | Air | ||
| Indication precision | ±0.03 MPa | ||
| Pressure switch | Setting range | 0.1 to 0.8 MPa | |
| Hysteresis | 0.07 MPa | ||
| Pointer error | ±0.05 MPa (5 to 40°C) ±0.08 MPa (–5 to 60°C) No freezing |
||
| Contact | With light: 1a (Normally open) Without light: 1ab (Normally open/ Normally closed) |
||
| Wiring | Lead wire (Length: 300 mm) | ||
| Indicator light | AC | Neon light | |
| DC | Light emitting diode (LED) | ||
| Clear cover | Part no.: G46-00-00-3 | ||
| Attachment: With cover ring assembly |
C | Part no.: 1305104-4A | |
| C2 | Part no.: 1305104-10A | ||
| Weight (kg) | 0.12 | ||
