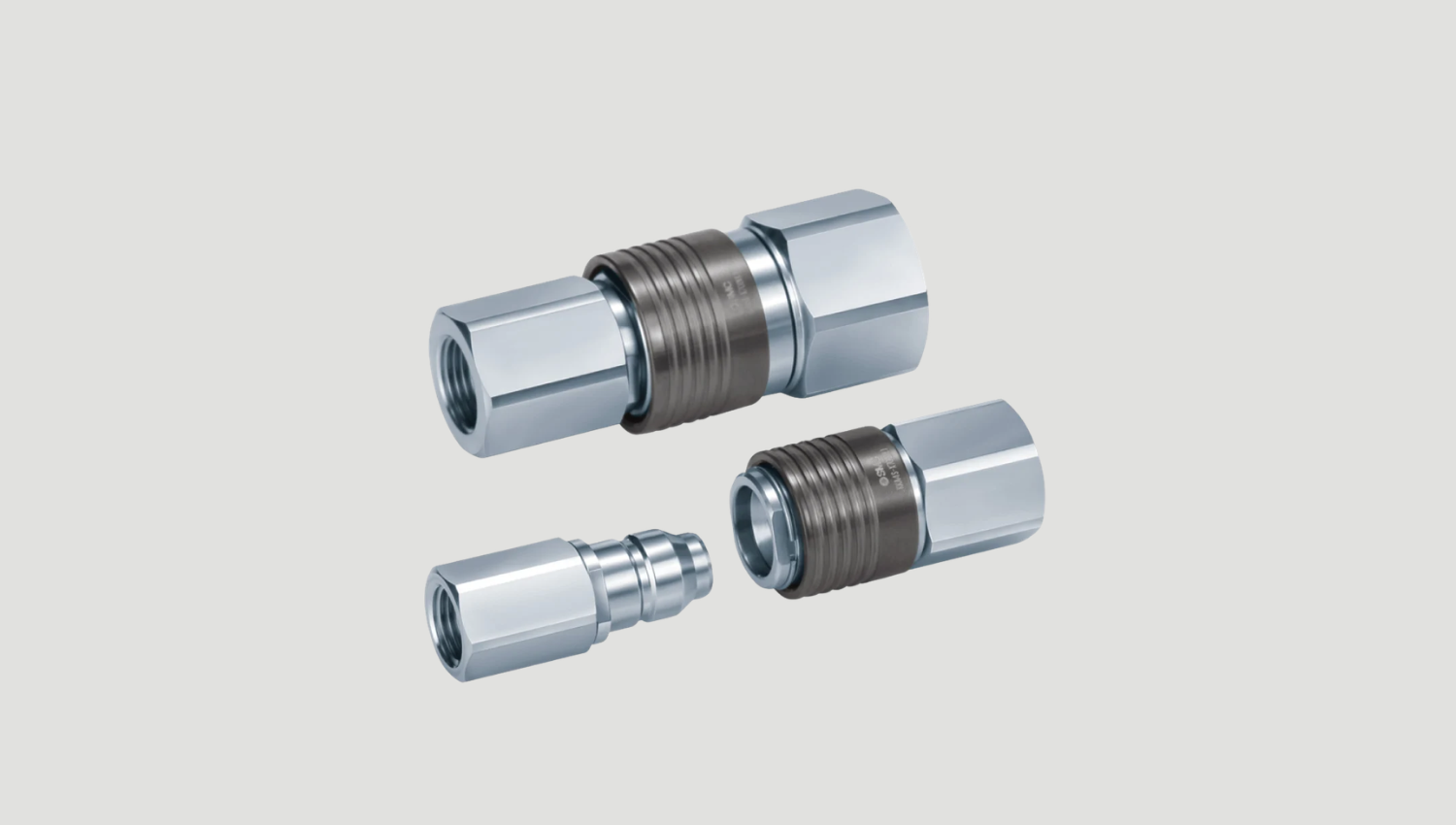

S COUPLERS STAINLESS STEEL TYPE SMC KKA

S Couplers Stainless Steel Type SMC KKA

Technical Information

Series Connection thread
KKA 1/8，1/4，3/8，1/2，3/4，1，1 1/4，1 1/2
Specifications KKA
Fluid Water, Air, N2
Operating
pressure range
Note 1)		 KKA2/3: –100 kPa to 1 MPa
KKA4/6/7/8/9: 0 to 1 MPa
Proof pressure 10 MPa
Ambient and
fluid temperature		 –5 to 150°C (No freezing)
Note) This product should not be used with steam.
Non-greased
specification		 No grease is used.
(Rubber, Metal sliding parts: Fluorine coated)
Material Metal part: Stainless steel 304, Rubber material: Fluororubber (Special FKM)
Seal With male thread sealant
