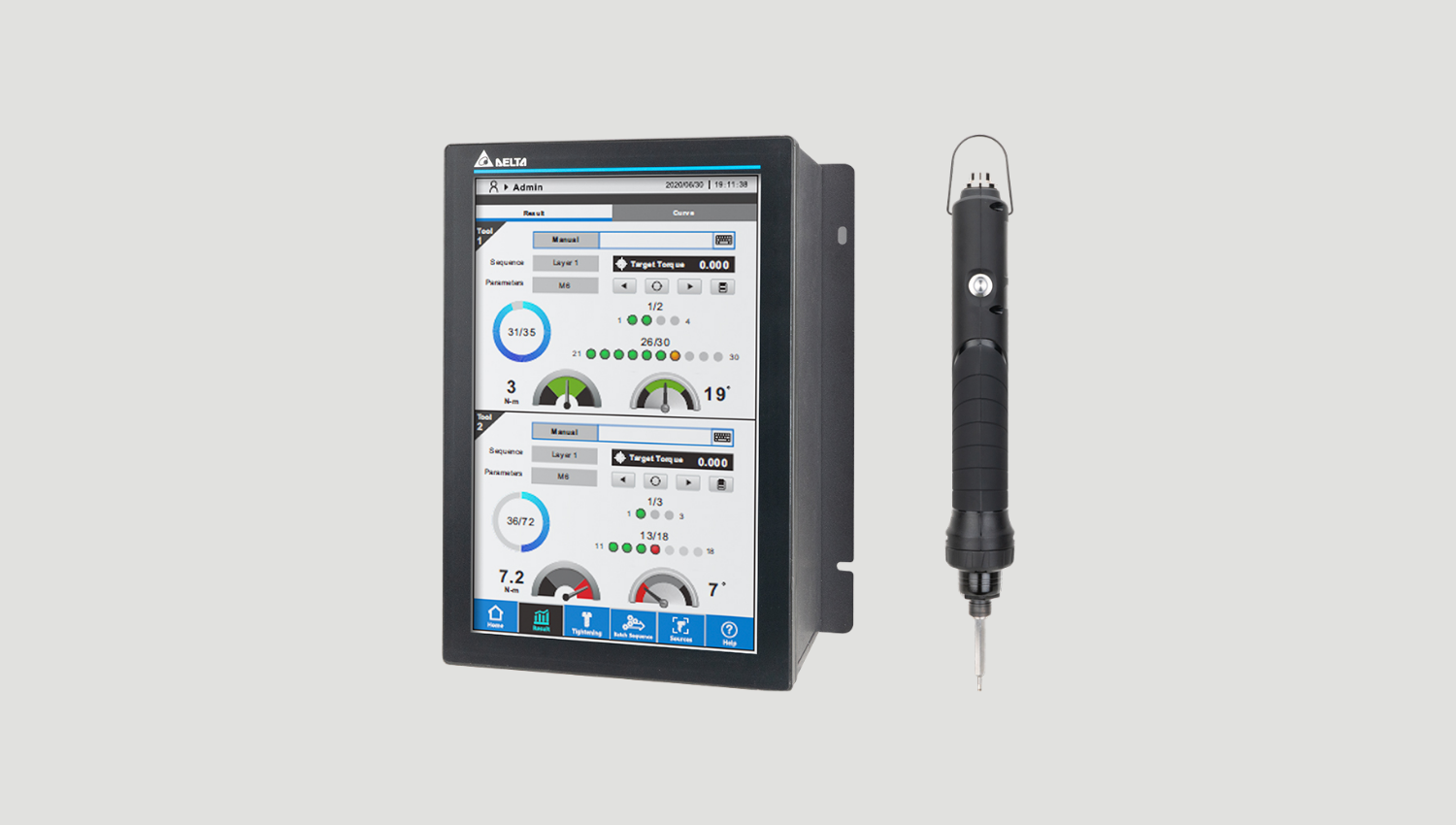

The Delta Smart Screwdriving System provides a one-stop solution for screw-tightening processes. It integrates the key technologies of servo motors, torque detection, and software control with Delta’s manufacturing experience. The system meets the precision and quality requirements of a variety of scenarios.
| Inline screwdriver | ECM-SD3-F1CS3 | ECM-SD3-F1HS3 | ECM-SD3-F2FS3 |
| Angle screwdriver | ECM-SD3-R1CS3 | ECM-SD3-R1HS3 | ECM-SD3-R2FS3 |
| Inline fixtured screwdriver |
ECM-SD3-M1CS3 | ECM-SD3-M1HS3 | ECM-SD3-M2FS3 |
| Input voltage | 38 VDC | ||
| Torque range (Nm) | 2.4 ~ 12 | 3.4 ~ 17 | 5 ~ 25 |
| Precision | ±3% | ||
| Max. speed (rpm) | 1000 | 700 | 500 |
| Length (mm) | Inline type: 410 / Automation type: 468 / Angle type: 474 | ||
| Weight (g) | Inline type: 1.92 / Automation type: 2.32 / Angle type: 2.25 | ||
| Handheld O.D. (mm) | 40 | ||
| Bit size | 3/8'' (9.525 mm) Square head | ||
| Operating temperature | 0°C ~ 40°C | ||
| Storage temperature | 0°C ~ 60°C | ||
| Humidity | 0 ~ 90% RH (non-condensing) | ||
