| Series | Tubing O.D. Metric size |
Tubing O.D. Inch size |
Color | Fluid |
|---|---|---|---|---|
| TS/TISA | φ4，φ6，φ8，φ10 φ12，φ16 |
φ1/8''，φ3/16''，φ1/4'' φ3/8''，φ1/2'' |

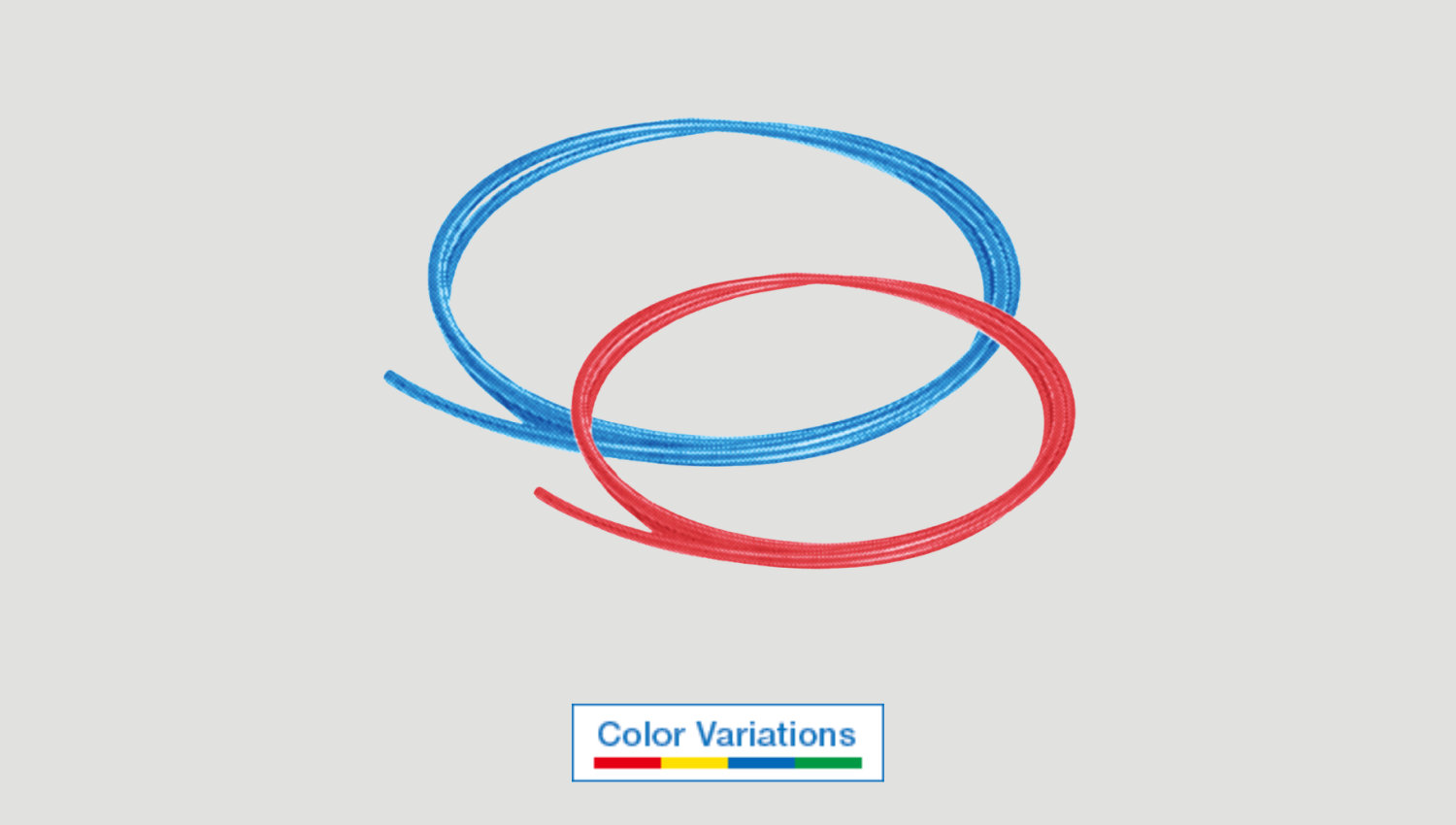

Black, White, Red, Blue, Yellow, Green | Air, Water Turbine oil class 1 (ISO VG32)*1 |
| Specifications | TS | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Fluid and Applicable fitting size |
Fluid: Air/Water |
Fitting: One-touch fittings, Insert fittings, Self-align fittings, Miniature fittings |
||||||||||
| Fluid: Turbine oil class 1 (ISO VG32) |
Fitting: Insert fittings | |||||||||||
| Max. operating pressure |
20°C or less | 2.0 | 1.7 | 1.3 | 1.3 | 1.3 | 1.3 | 1.3 | 1.3 | 1.3 | 1.3 | 1.3 |
| 40°C | 1.4 | 1.2 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | |
| 60°C | 1.0 | 0.85 | 0.65 | 0.65 | 0.65 | 0.65 | 0.65 | 0.65 | 0.65 | 0.65 | 0.65 | |
| 80°C | 0.8 | 0.65 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | |
| 100°C | 0.6 | 0.45 | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 | |
| Operating vacuum pressure [kPa] | −101.3 | |||||||||||
| Min. bending radius |
Min. bending radius |
15 | 23 | 45 | 55 | 65 | 90 | 18 | 27 | 30 | 55 | 65 |
| Bending value (Reference) |
12 | 17 | 34 | 42 | 50 | 70 | 12 | 15 | 23 | 42 | 50 | |
| Operating temperature | Air/Oil: −40 to 100°C, Water: 0 to 50°C (No freezing) | |||||||||||
| Material | Nylon 12 | |||||||||||
