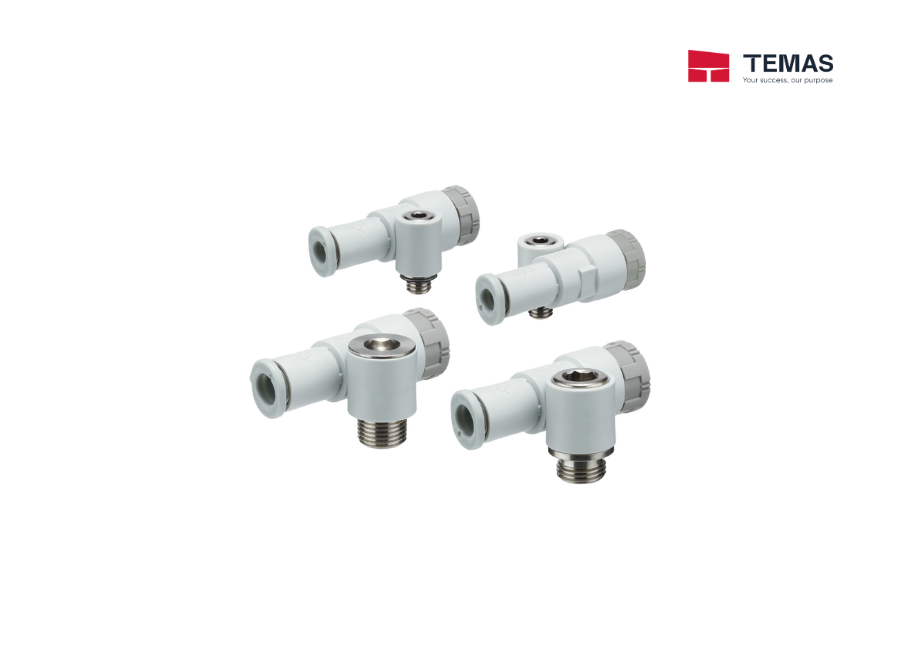

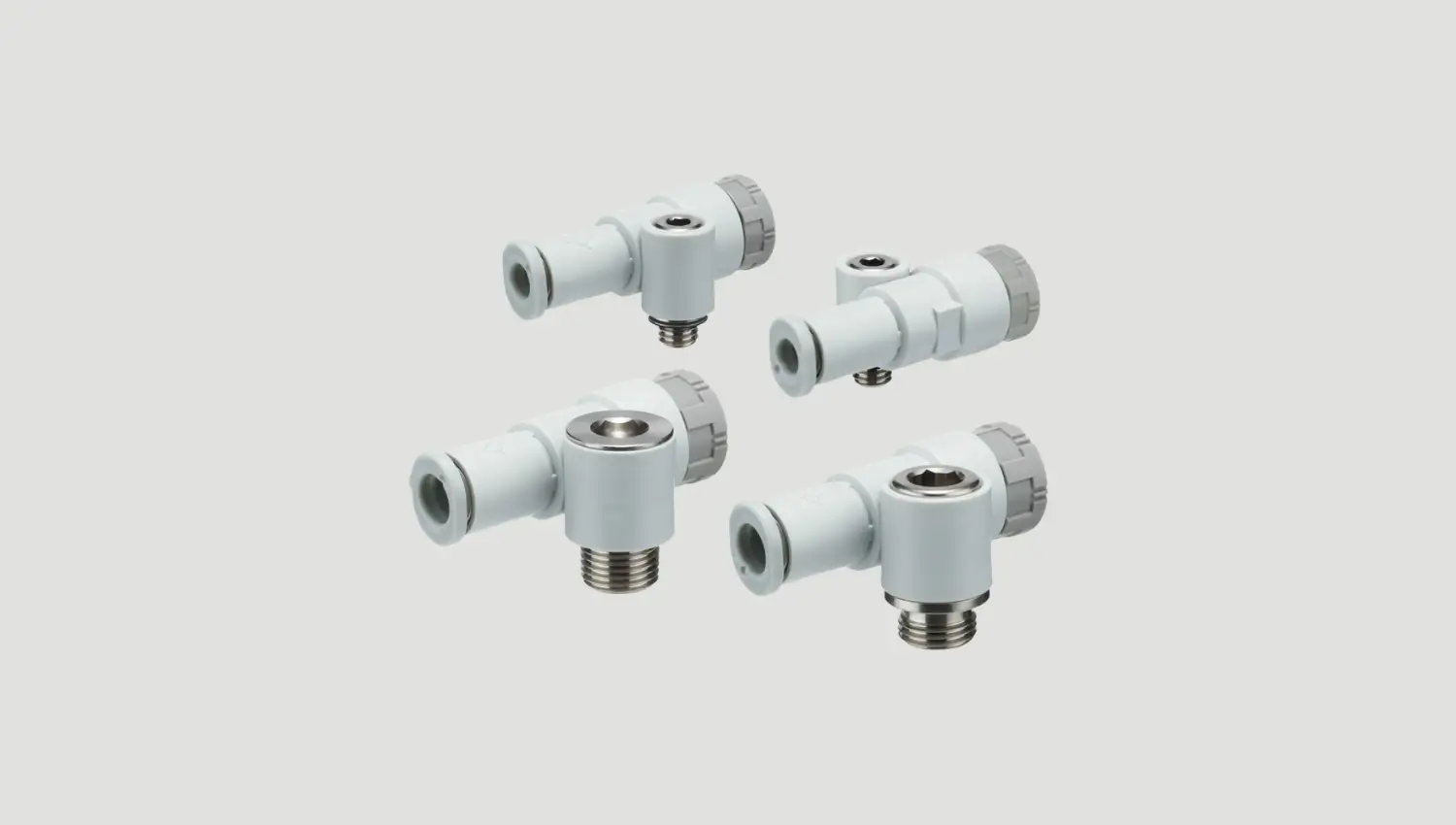

SPEED CONTROLLER WITH ONE-TOUCH FITTING COMPACT TYPE SMC JAS

Speed Controller with One-touch Fitting Compact Type SMC JAS

Technical Information

Type Series Port size on the cylinder side Applicable tubing O.D. Metric size Applicable tubing O.D.
Inch size
Elbow type JAS M3 x 0.5
M5 x 0.8
10-32UNF		 φ3.2 to φ4 to φ6 φ1/8'' to φ5/32'' to φ1/4''
Specifications JAS
Fluid  Air
Proof pressure  1.05 MPa
Max. operating pressure  0.7 MPa
Min. operating pressure  0.05 MPa
Ambient and fluid temperature  -5 to 60°C (No freezing)
Applicable tubing material  Nylon, Soft nylon, Polyurethane Note), FEP, PFA
