Stand-alone servo press janome jpt series 5

STAND-ALONE SERVO PRESS JANOME JPT SERIES 5

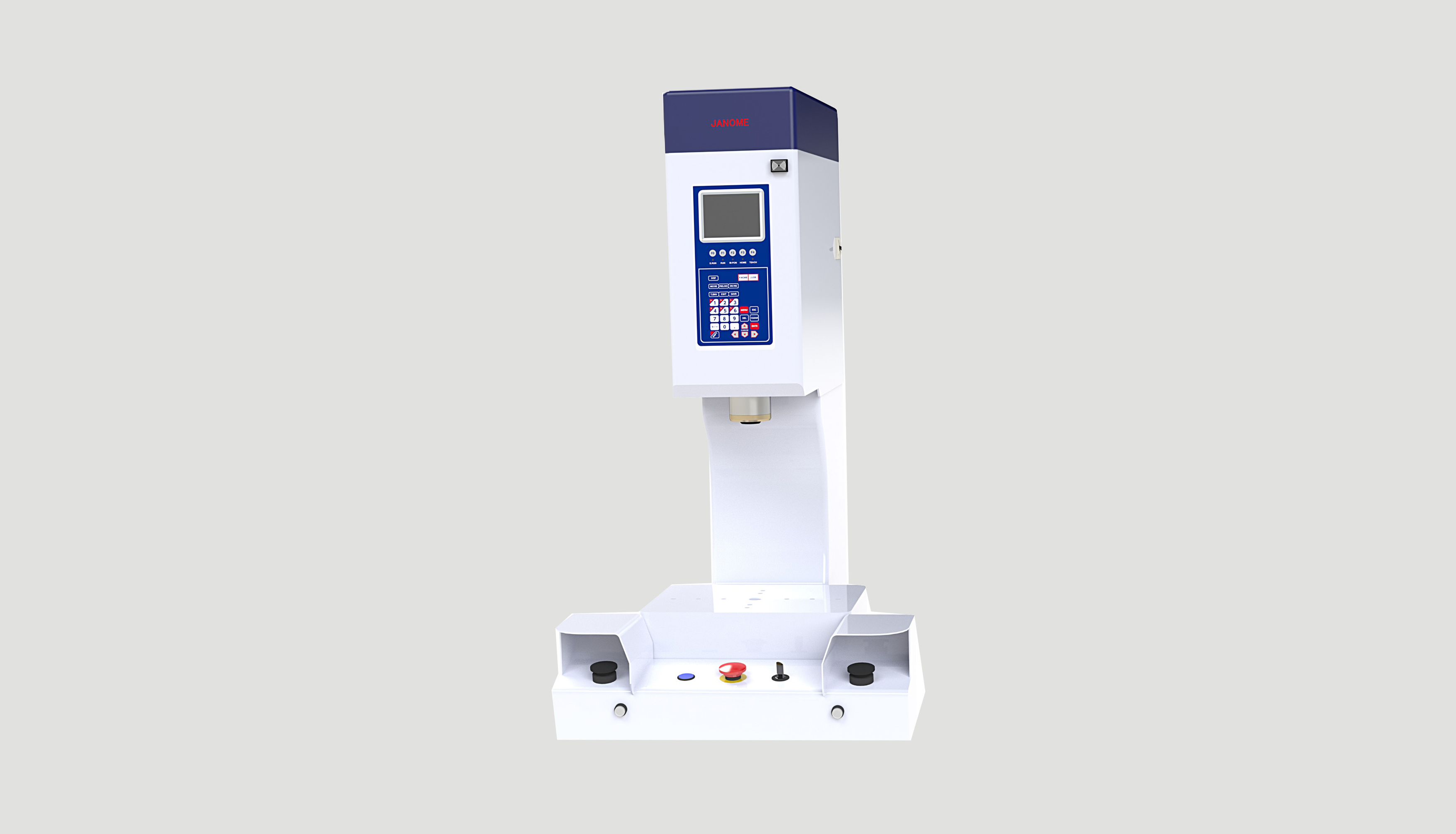

JPT5 - Ready to Run C-Frame Servo Press
Comprehensive Two Hand Switch-Operated Pressing System

Model : JPT-0055, JPT-0105, JPT-0205, JPT-0505, JPT-1005, JPT-1505, JPT-2005, JPT-3005, JPT-5005.

Model		JPT-0055	JPT-0105	JPT-0205	JPT-0505	JPT-1005	JPT-1505	JPT-2005	JPT-3005	JPT-5005
Capacity (KN)		0.5	1	2	5	10	15	20	30	50
Stroke (mm)		80			100			200
Max. speed (mm/s)		414			280			-
Repeatability		±0.005mm						-
Dimensions (WxDxH)		520x659x816mm			520x675x947mm			-
Weight (kg)		109			143			-
Encoder		Incremental
Display unit		Force: N, kgf, Lb　　Displacement: mm, inch
Languages	PC software	English, Japanese, Korean, Chinese (Simplified & Traditional)
	Teaching panel	English, Japanese, Korean, Chinese (Simplified & Traditional), Vietnamese, German, French, Spanish, Italian, Romanian, Czech
Control system		AC servomotor drive 32 bit CPU (dual core)
Interface	COM	RS-232C 1ch
	I/O-SYS	17 Inputs / 16 Outputs (Please choose NPN or PNP specifications when you place your order.)
	LAN	10BASE-T/100BASE-TX
	MEMORY	For USB Memory Connection ・ Backup model setting data and teaching data ・ Save result data ・ Upgrade system software
	Fieldbus (Tùy chọn)	CC-LINK, DeviceNet, PROFIBUS, CANopen, PROFINET, Ethernet/IP *Specify at time of order
	I/O-S	For Safety Device Connection
Power supply		Single Phase / 3 Phase AC200～240V ±10%
Environment	Temperature	0～40℃
	Humidity	20～90％（non-condensing）
Protection level		IP20
