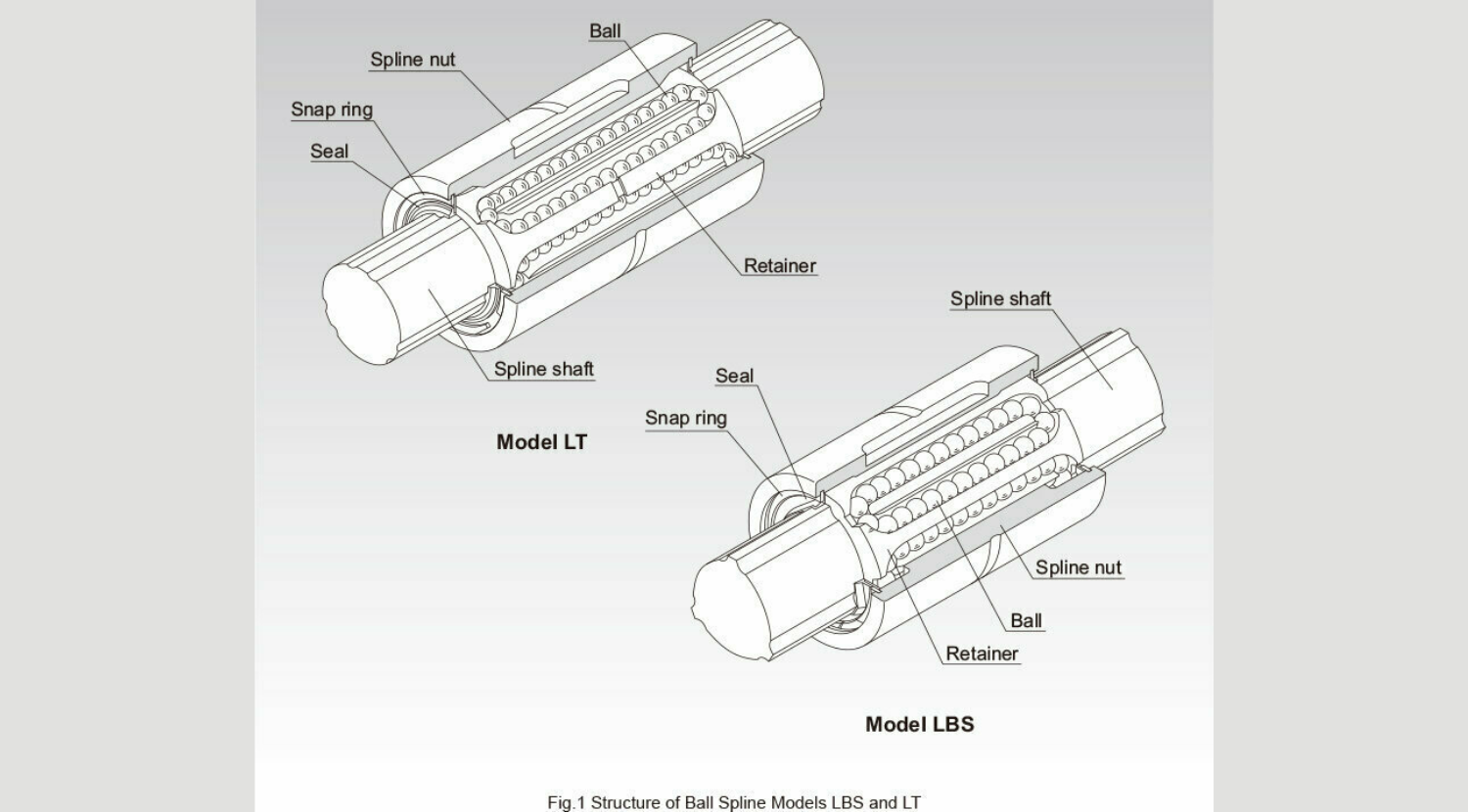

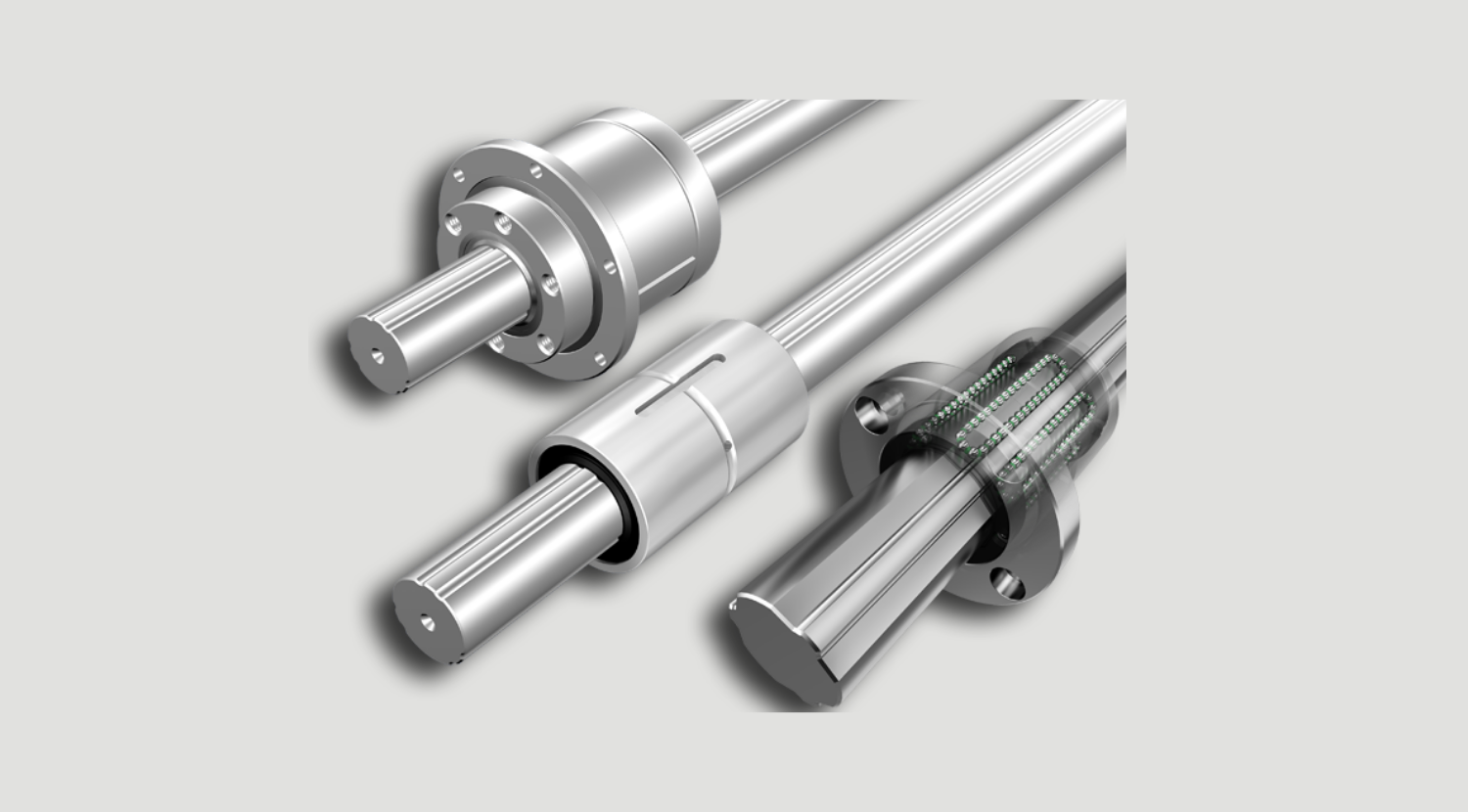

The Ball Spline is an innovative linear motion system in which balls accommodated in the spline nut transmit torque while linearly moving on precision-ground raceways on the spline shaft.
Unlike the conventional structure, a single spline nut can provide a preload with THK’s Ball Spline. As a result, the Ball Spline demonstrates high performance in environments subject to vibrations and impact loads, locations where a high level of positioning accuracy is required or areas where high-speed kinetic performance is required.
In addition, even when used as an alternative to a linear bushing, the Ball Spline achieves a rated load more than 10 times greater than the linear bushing with the same shaft diameter, allowing it to compactly be designed and used in locations where an overhung load or a moment load is applied. Thus, the Ball Spline provides a high degree of safety factor and long service life.

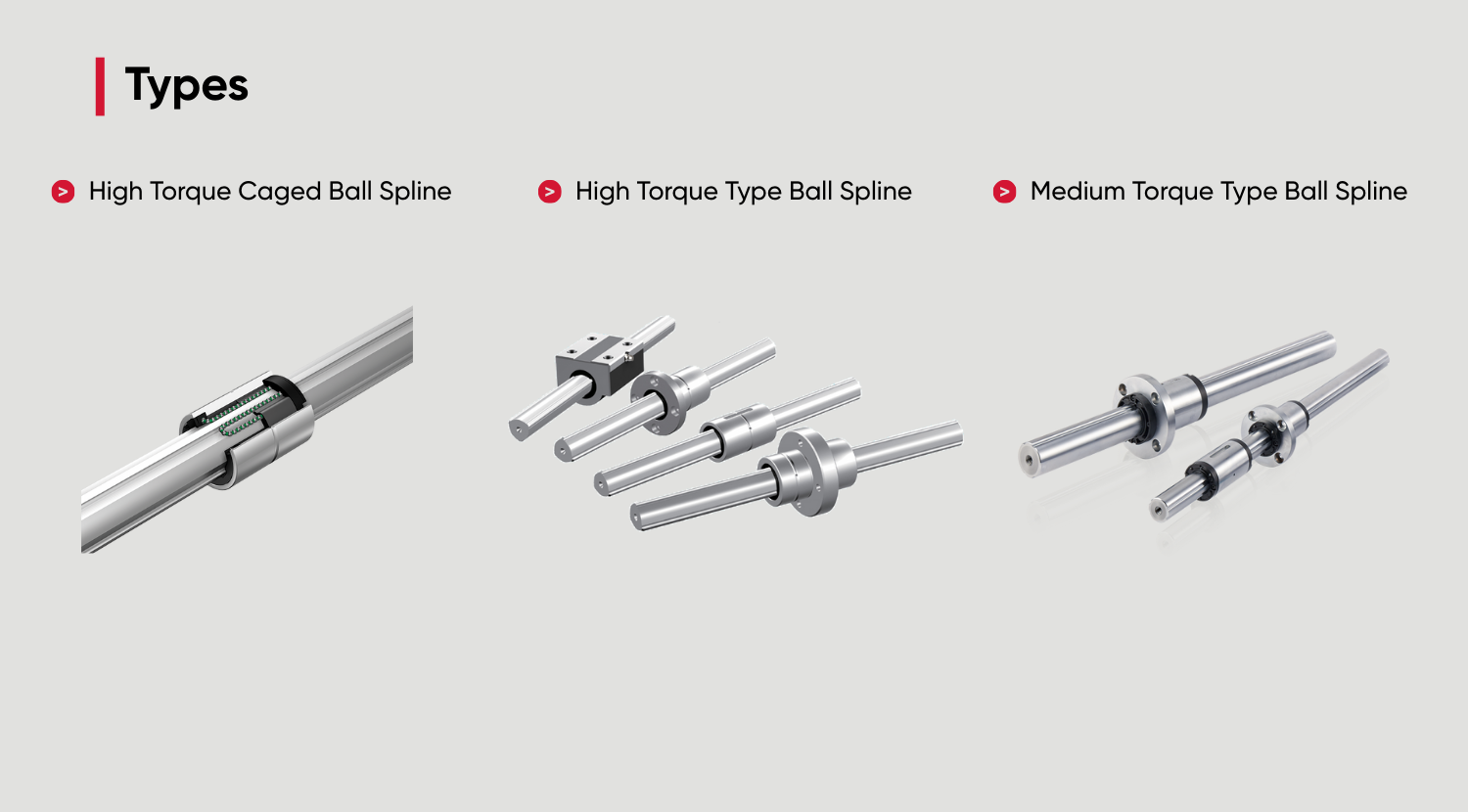

| High Torque Caged Ball Spline | High Torque Type Ball Spline | Medium Torque Type Ball Spline |
 |
 |
 |
| The use of a ball cage maintains the aligned circulating motion and enables high-speed operation. In addition to preventing balls from impacting each other and causing mutual friction, the cages enable low noise and low dust generation. They also allow for long-term maintenance-free operation by improving grease retention. | The spline shaft has three crests positioned equidistantly at 120°, and along both sides of each crest, two rows of balls (six rows in total) are arranged so as to hold the crest so a single spline nut provides a preload to eliminate angular backlash and increase the rigidity. | This ball spline has a large load capacity in the radial and torque directions because the spline shaft has two to three crests on the circumference, and along both sides of each crest, two rows of balls (four to six rows in total) are arranged to hold the crest so that a reasonable preload is applied. |
| Go to product page | Go to product page | Go to product page |

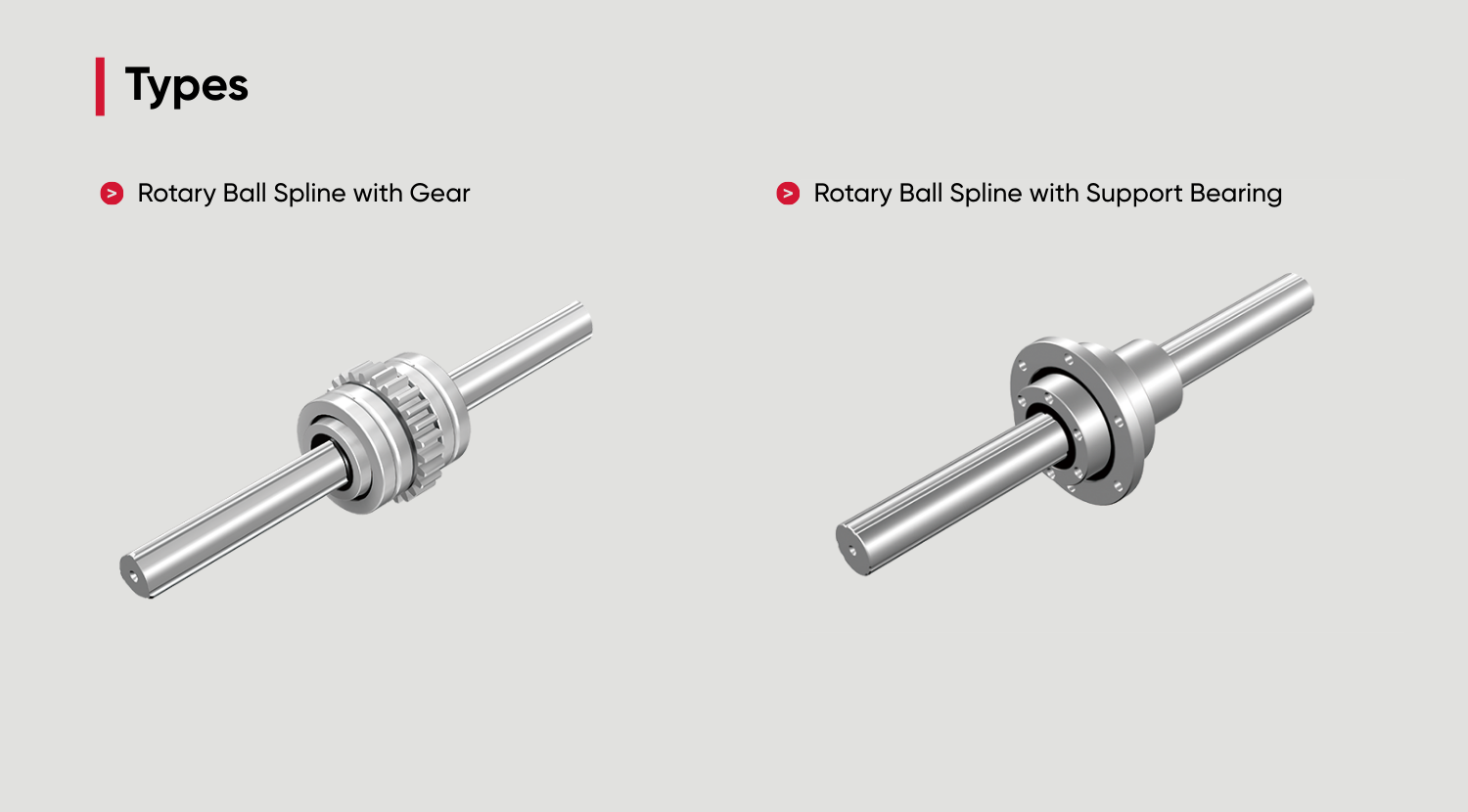

| Rotary Ball Spline with Gear | Rotary Ball Spline with Support Bearing | |
 |
 |
|
| These models are unit types that have gear teeth on the flange circumference and radial and thrust needle bearings on the spline nut, all compactly integrated. The ball spline is optimal for torque transmission with a spline nut drive. | A compact unit type ball spline whose support bearings are directly integrated with the outer surface of the spline nut. | |
