Types

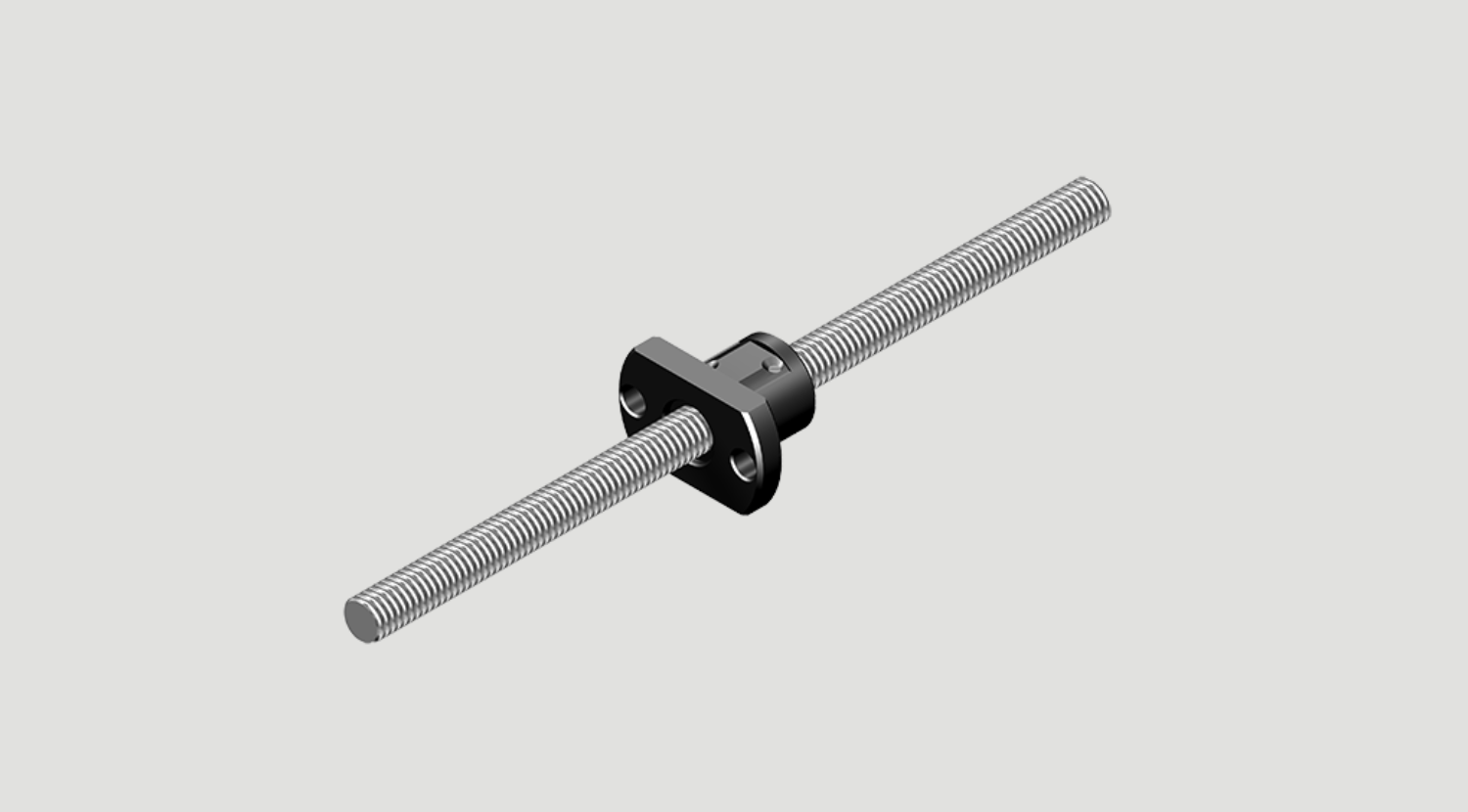

• Miniature Model MTF

Features

The use of a guide plate system provides a compact design with a round outer diameter for the nut. The screw shaft is roll-molded with a high degree of precision to ensure smooth operation.

Achieves Lead Angle Accuracy of Class C7

The high-precision roll molding provides normal grade (±0.1/300 mm) or C7 grade (±0.05/300 mm) error in travel distance. The axial clearance is also small at 0.05 mm, allowing the product to be used in a wide range of applications.

Quick Delivery, Low Cost

Nut and screw shaft (standard-sized) combinations are always stocked together, making them affordable and quick to deliver.

Easy Shaft End Machining

To facilitate additional machining of screw shaft ends, a section has been left unhardened. Use nut stroke ranges that are within the hardened area shown in the dimensional tables.
