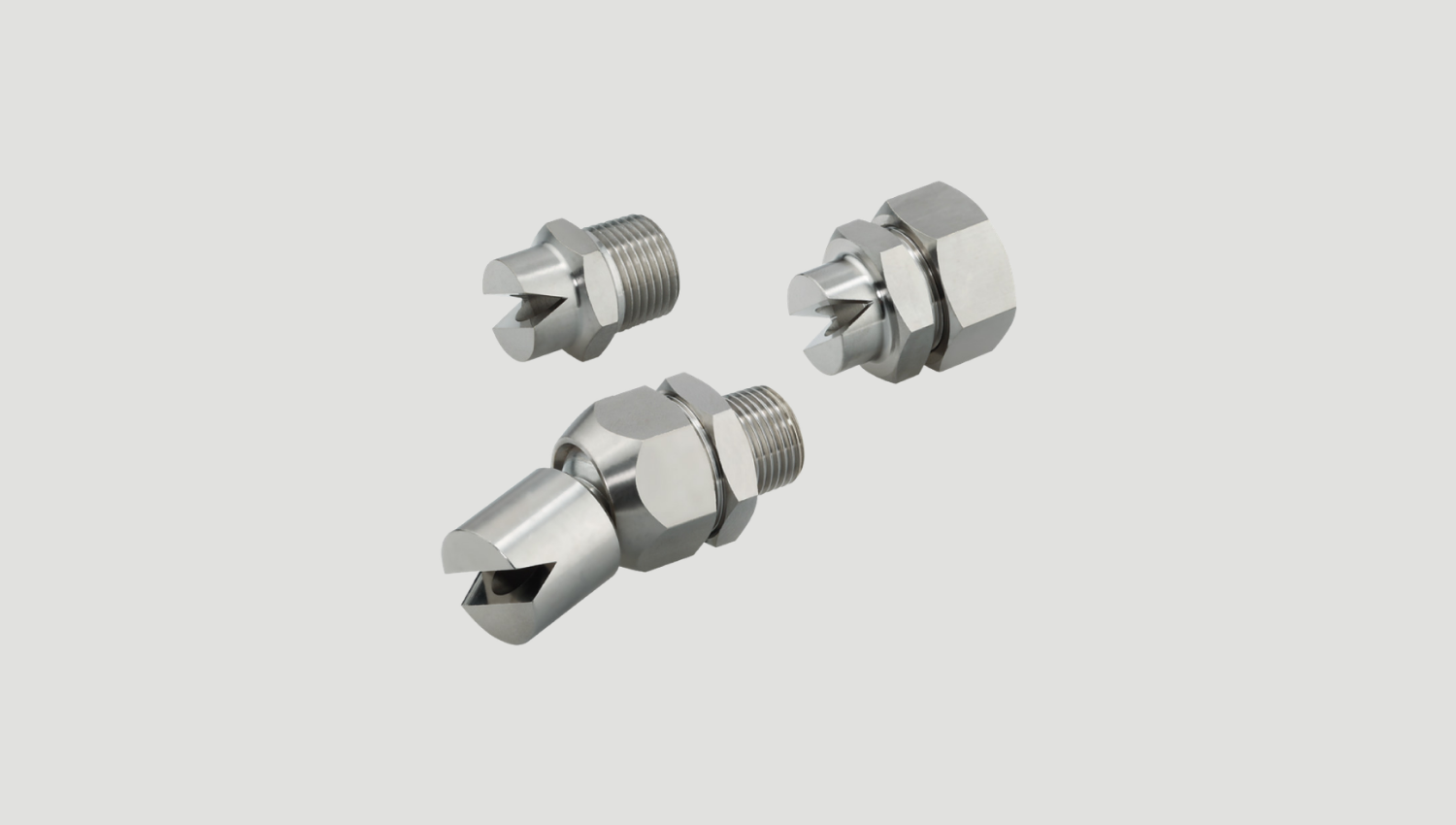

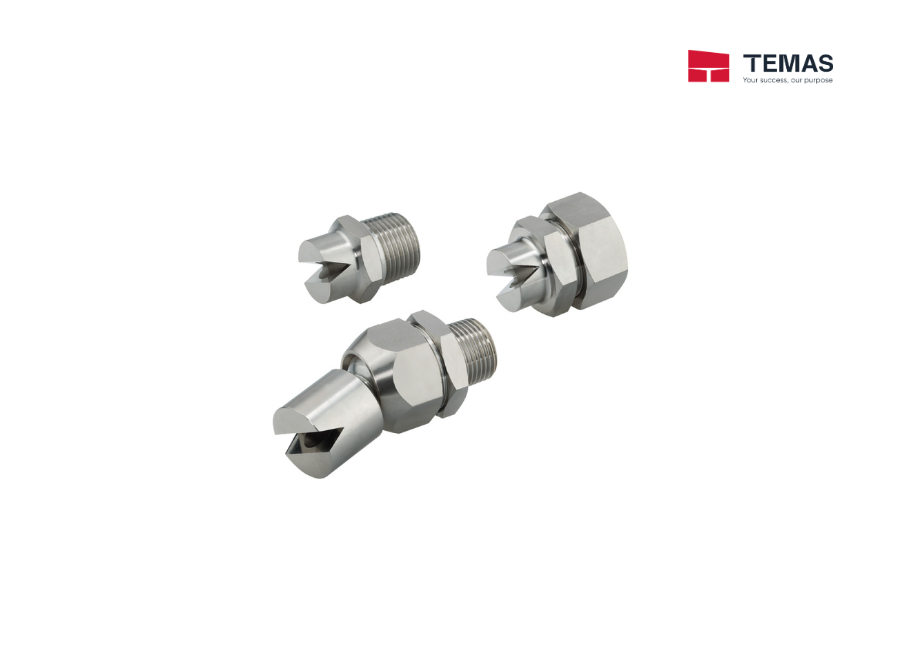

WIDE ANGLE BLOW NOZZLE SMC IN-225 SERIES

Wide Angle Blow Nozzle SMC IN-225 Series

Technical Information

Series Type Nozzle size
IN-225-1054 Nozzle with male thread φ6 equivalent
IN-225-1056
IN-225-1057
IN-225-1059		 Nozzle with self-align fitting φ6 equivalent
IN-225-1104 Pivot nozzle with male thread φ6 equivalent
Specifications IN-225
Applicable tubing material  Flexible copper pipe (C1220T-O), OST pipe
Applicable tubing O.D.  ø10, ø12, ø16
Fluid  Coolant, Water, Air*1
Operating
pressure		 Coolant, Water  0.3 MPa
Air   1 MPa (0.3 MPa when connecting an OST pipe)
Ambient and fluid temperatures  -5 to 60°C (No freezing)
Seal on the threads  None
Material  Brass (With electroless nickel plating)
