MAGNET BUFFER SMC ZP3B□M SERIES

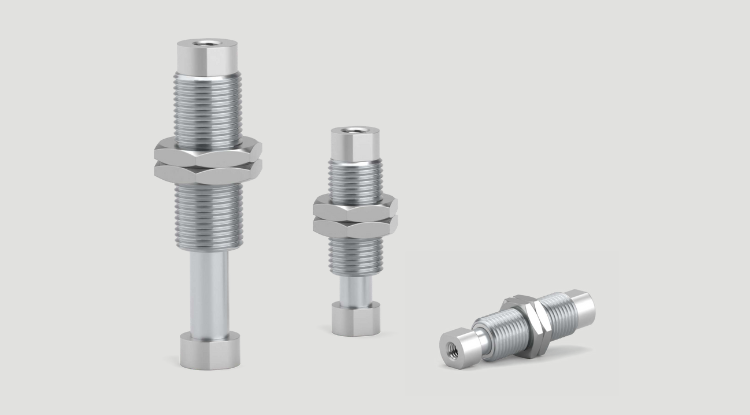

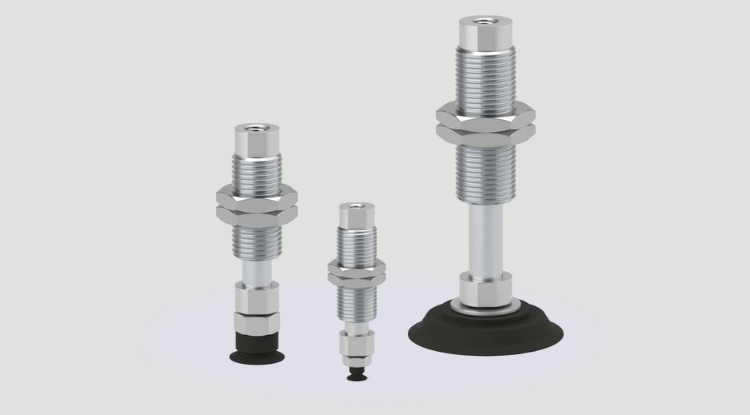

Magnet Buffer SMC for stable, low-particle handling of packaging substrates, FPD panels, and electronic components.

Model: ZP3B1M, ZP3B2M, ZP3B3M.

Technical Information

Model ZP3B1M ZP3B2M ZP3B3M
Buffer type Magnet
With or without non-rotating With
With or without bushing With
Ambient and fluid temperatures [°C] 5 to 50
Stroke [mm] 3 6 3 6 3 6 3 6 3 6 16 3 6 16
Buffer reaction force [N] 0.15 ±0.05 0.3 ±0.1 0.3 ±0.1 0.5 ±0.1 0.5 ±0.1 1.0 ±0.1
Accuracy of buffer reaction force [%] Within ±15 F.S
Max. holding torque [N·m] 0.25 or more 0.5 or more 0.5 or more 0.8 or more 0.8 or more 1.3 or
more		 1.4 or more 3.4 or
more
Connection thread M8 x 0.75 M10 x 1.0 M12 x 1.0
Nut tightening torque [N·m] 1.5 to 2.0 2.5 to 3.5 4.5 to 5.5
Cup adapter/Vacuum inlet M3 x 0.5 M5 x 0.8
