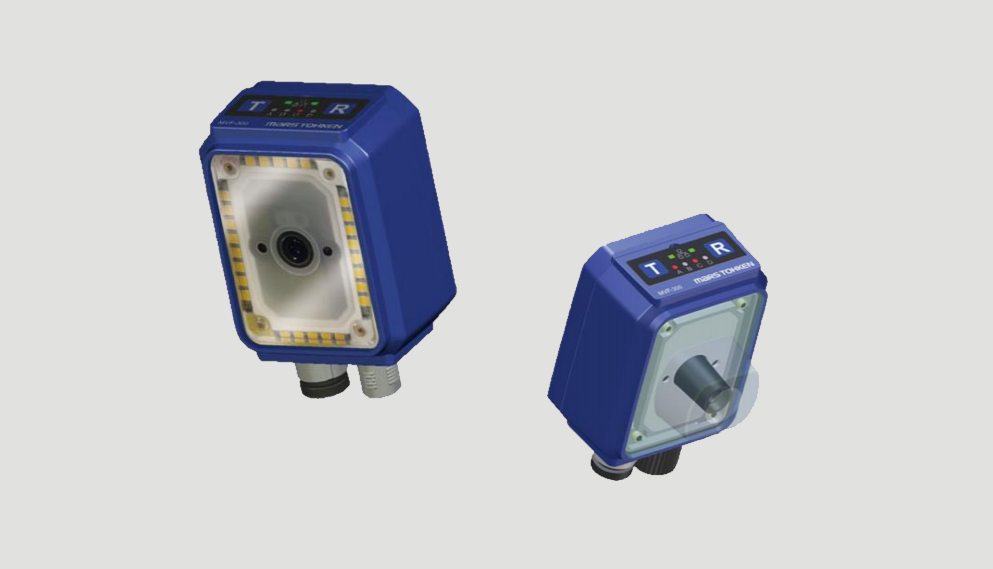

FIXED-MOUNT CODE SCANNER (2D) MARS TOHKEN | MVF-300 SERIES

Model: MVF-300, MVF-300SR, MVF-300LR, MVF-300LR2.

Read defective symbols without complicated configuration from Mars Tohken Solution.



Technical Information

Model MVF-300, MVF-300SR, MVF-300LR, MVF-300LR2
Interface RS-232C, Ethernet (10 Base-T, 100BASE-TX, 1000BASE-T)
Supported barcodes (2D) DataMatrix(ECC200), QR Code, MicroQR

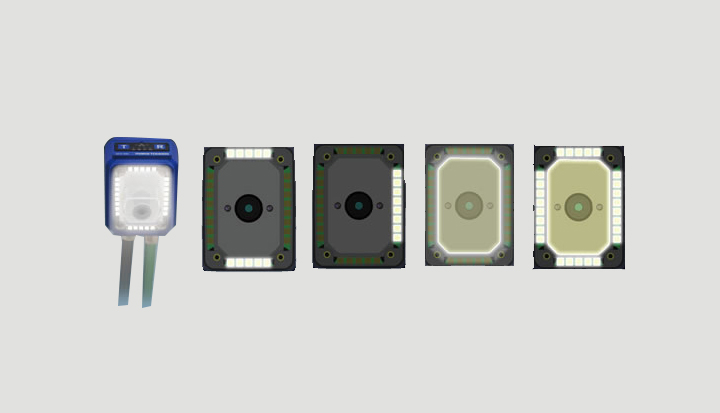

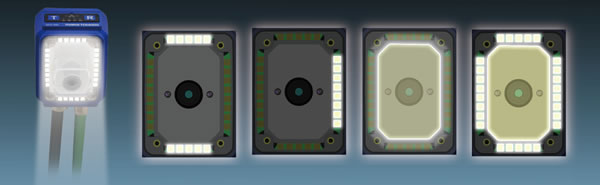

Integrated lighting White LED
Focal lenght 300-SR: 31mm, 300: 100mm, 300-LR: 200mm, 300-LR2: 300mm
Power supply DC24V+/-10%, PoE (Optional)
Power consumption Standby 140mA, Operation 400mA, PoE Power class 3 (Optional)
Operating temp./humi.     0 to 40C / 35 to 85%RH (no condence)
Storage temp./humi.     -20 to 65 C / 35 to 85%RH (no condence)
Digital input     Photocoupler isolation x 1
Digital output     Photocoupler isolation x 3
Dimensions 55(W) x 70(H) x 35(D)mm
Weight 200g
