The Model RT uses rollers as a rolling element for higher rigidity. It also has two axial rows of rollers and one radial row of rollers suited for high-speed rotation.
This model can be used for both outer and inner ring rotation.
The High-Speed Roller Ring Model RT has a roller contact structure suitable for high-speed rotation to suppress heat generation during high-speed rotation and achieves a Dpw·N value of 300,000.
| Model No. | Permissible rotational speed |
|---|---|
| RT228 | 1,290 |
| RT297 | 990 |
| RT445 | 660 |
| RT665 | 440 |

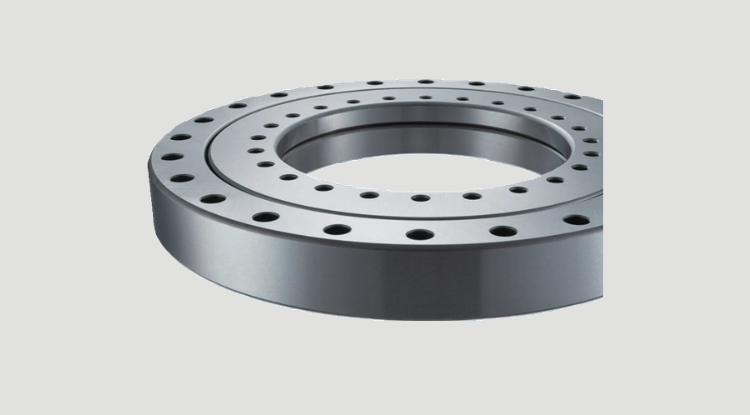

This product features mounting holes in the inner and outer rings, allowing the product to attach directly to shafts and housings. Because of that, other components that would be needed for mounting can be eliminated. In addition, you can choose the mounting surface orientation of the inner ring based on the way the product will be mounted to your equipment.
 |
 |
Because the internal and external diameters, width dimensions, and mounting hole positions are identical on the High-Speed Roller Ring for Multi-Functional Machine Rotary Tables Model RT and the Double-Row Angular Roller Ring Model RW, you can select either based on the specifications you require.
This product speeds up rotary tables and contributes to shortened cycle times through superior high-speed rotary performance. It can also be used for lathe turning.
This product achieves high rigidity by increasing the number of rollers with a double-row structure. It is suited for the rotary tables of multi-functional machines.
