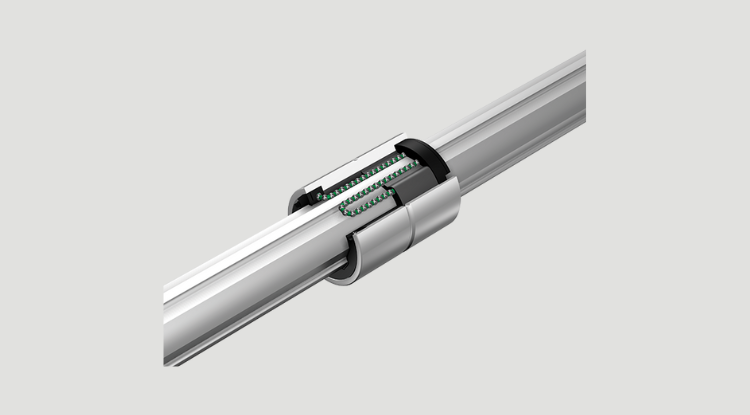

The caged-ball technology, developed by bringing together THK’s technologies and know-how, is now integrated in the new Ball Spline.
The integration of the ball cage enables the circulating motion of evenly spaced balls and high-speed response to be achieved.
It eliminates collision and mutual friction between balls, and realizes low noise, pleasant running sound and low particle generation. As the grease retention is increased, long-term maintenance-free operation is also achieved.
The high-torque design provides the nut with excellent torsional rigidity. The spline shaft also has enhanced rigidity, thanks to its rounded design.

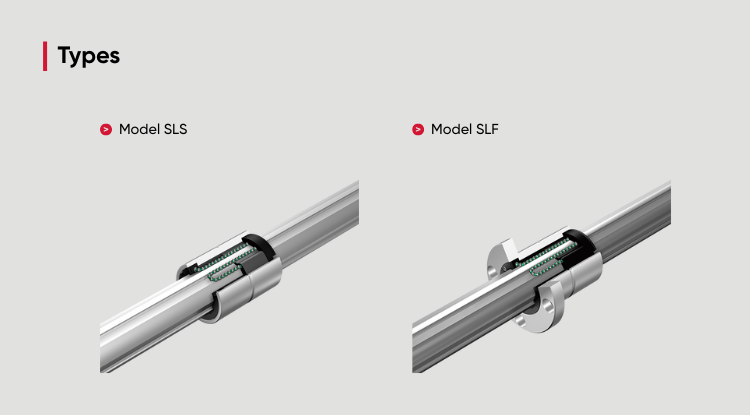

Models SLS/SLF adopt the caged-ball technology to enable the circulating motion of evenly spaced balls to be maintained and high-speed response to be achieved, the cycle time of the machine can be improved.
Redesigning the shape of the conventional high torque type spline shaft to be more circular significantly improves its torsion and flexural rigidity.
Models SLS/SLF adopt the caged-ball technology, they eliminate collision and mutual friction between balls, and realize low noise, pleasant running sound and low particle generation.
Models SLS/SLF adopt the caged-ball technology to substantially increase the grease retention, thus achieving long-term maintenance-free operation.
Models SLS/SLF adopt the caged-ball technology and a new circulation method, thus achieving stable and smooth motion with small rolling fluctuation.
The spline shaft is cold-drawn and its raceway is precision ground. It is used in combination with a spline nut.
THK manufactures a spline shaft with thicker ends or thicker middle area through special processing at your request.
A drawn, hollow spline shaft is available for requirements such as piping, wiring, air-vent and weight reduction.
When fitting the spline nut to the housing, transition fit is normally recommended. If the accuracy of the Ball Spline does not need to be very high, clearance fitting is also acceptable.
