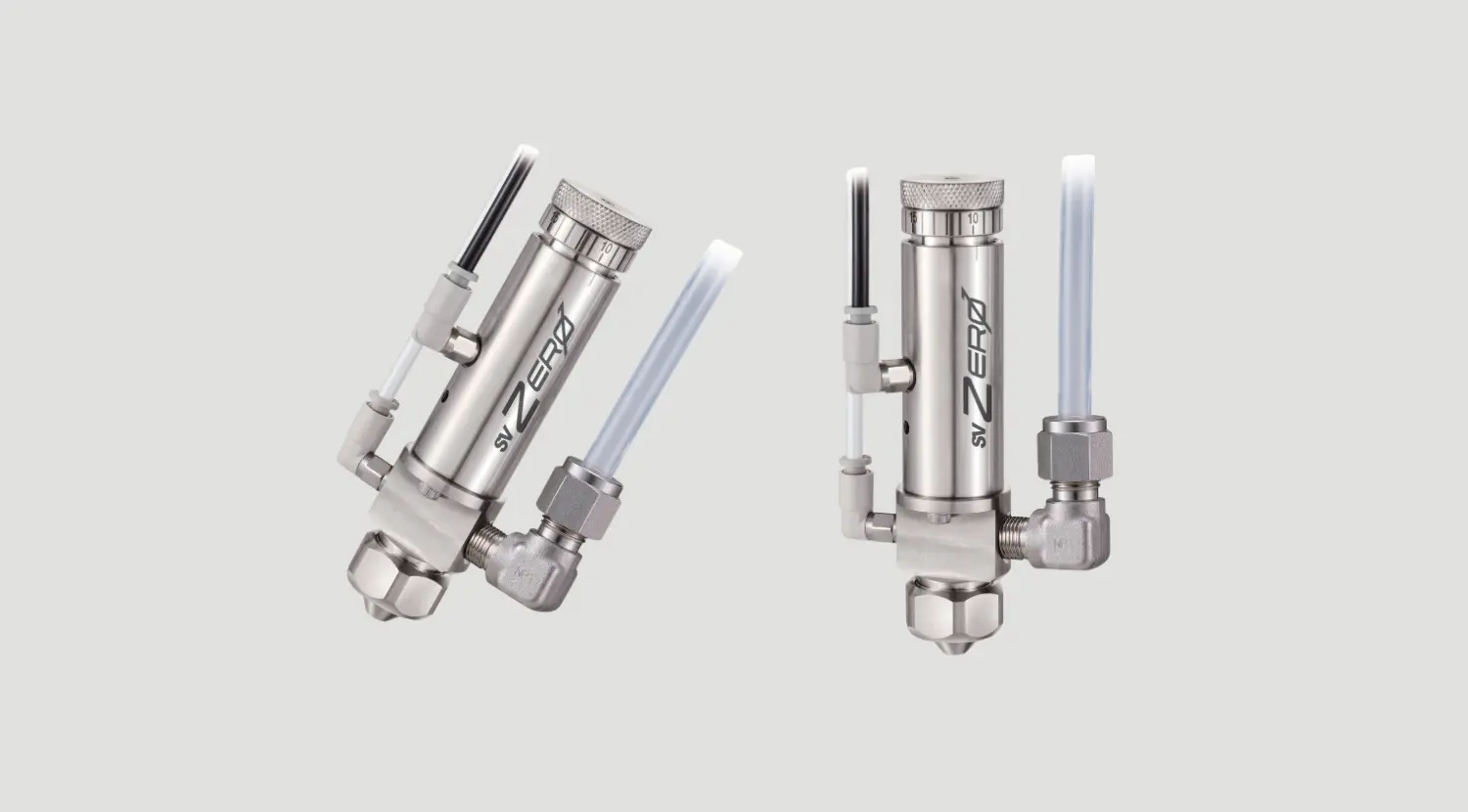

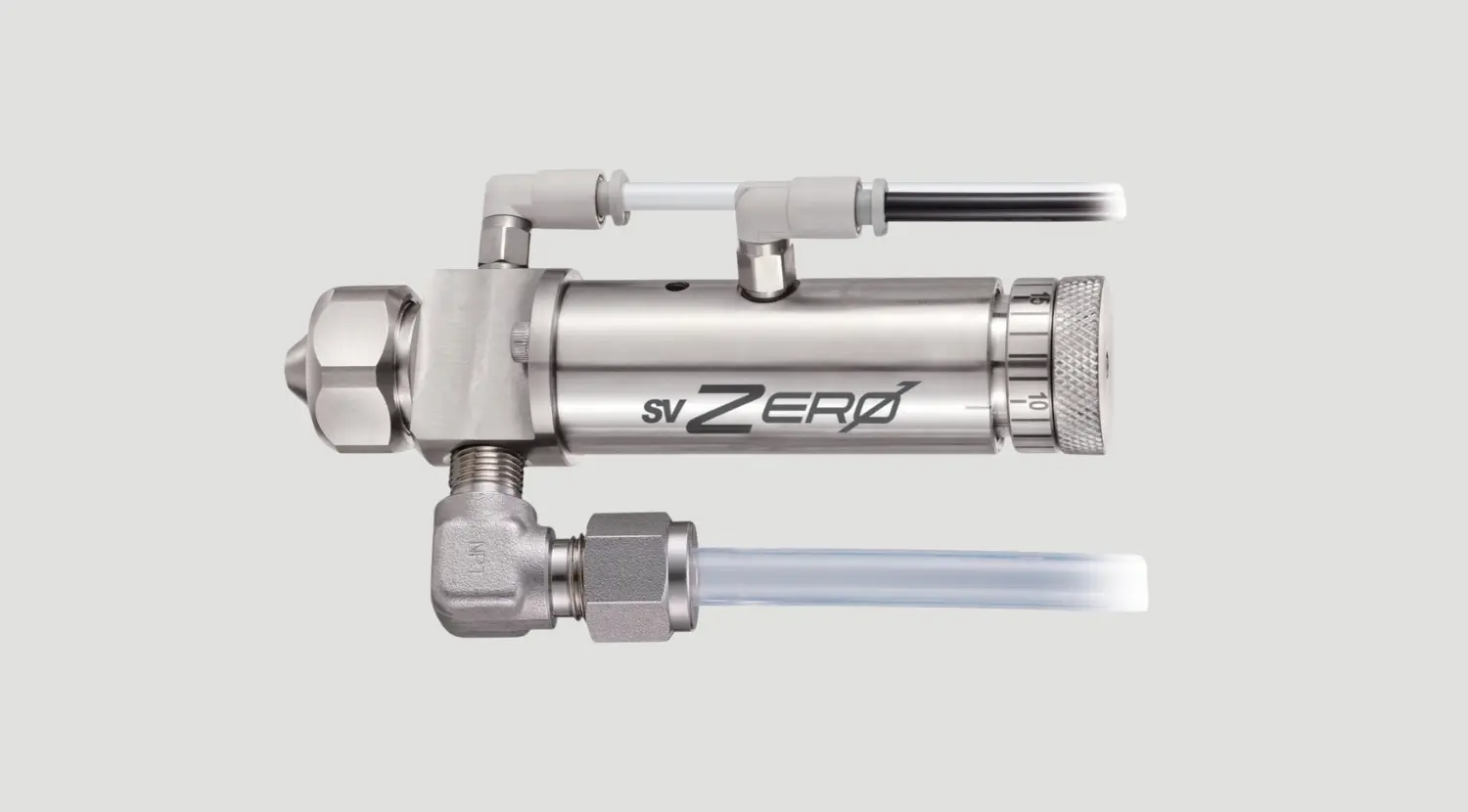

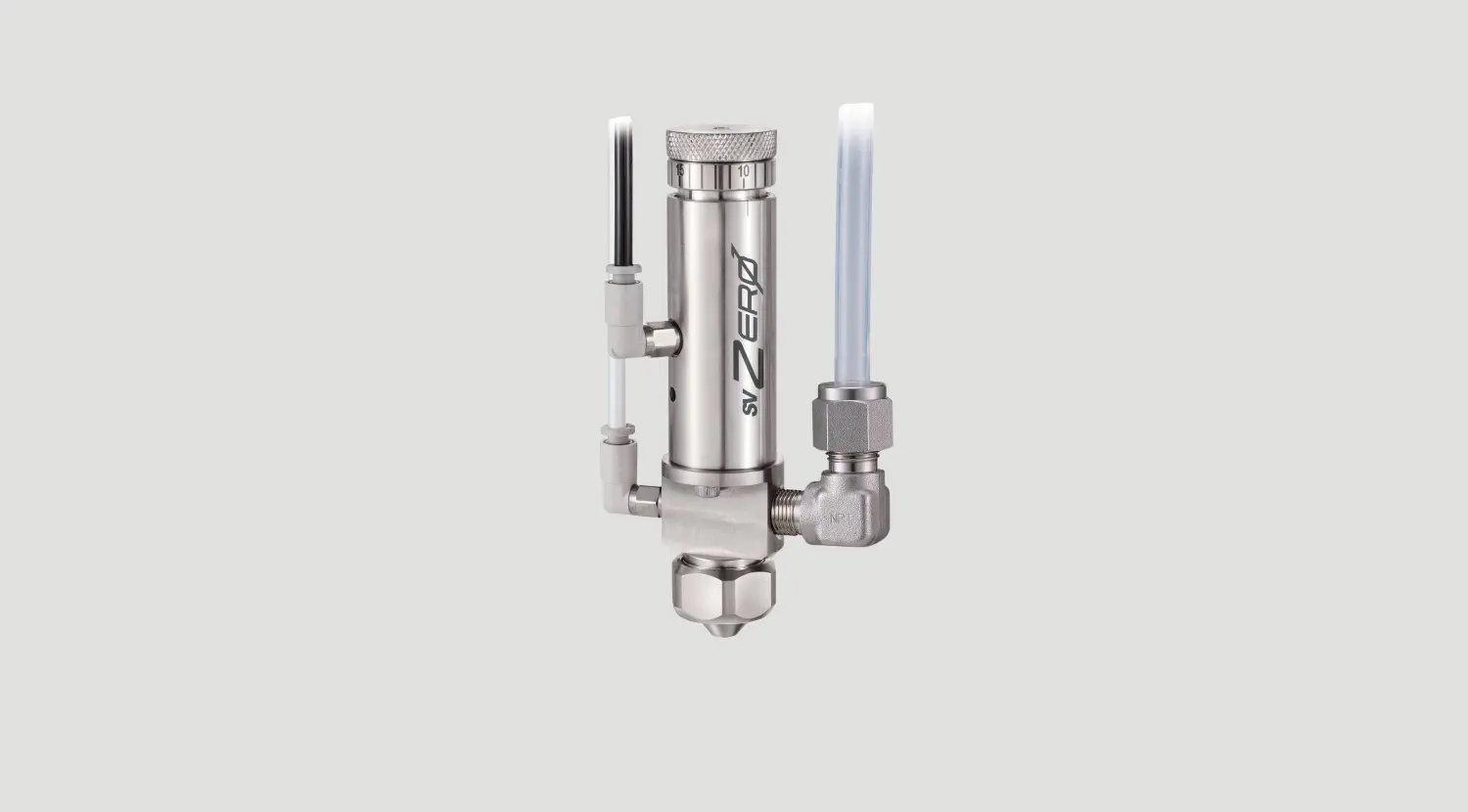

COATING SPRAY VALVE SV01S SAN-EI TECH

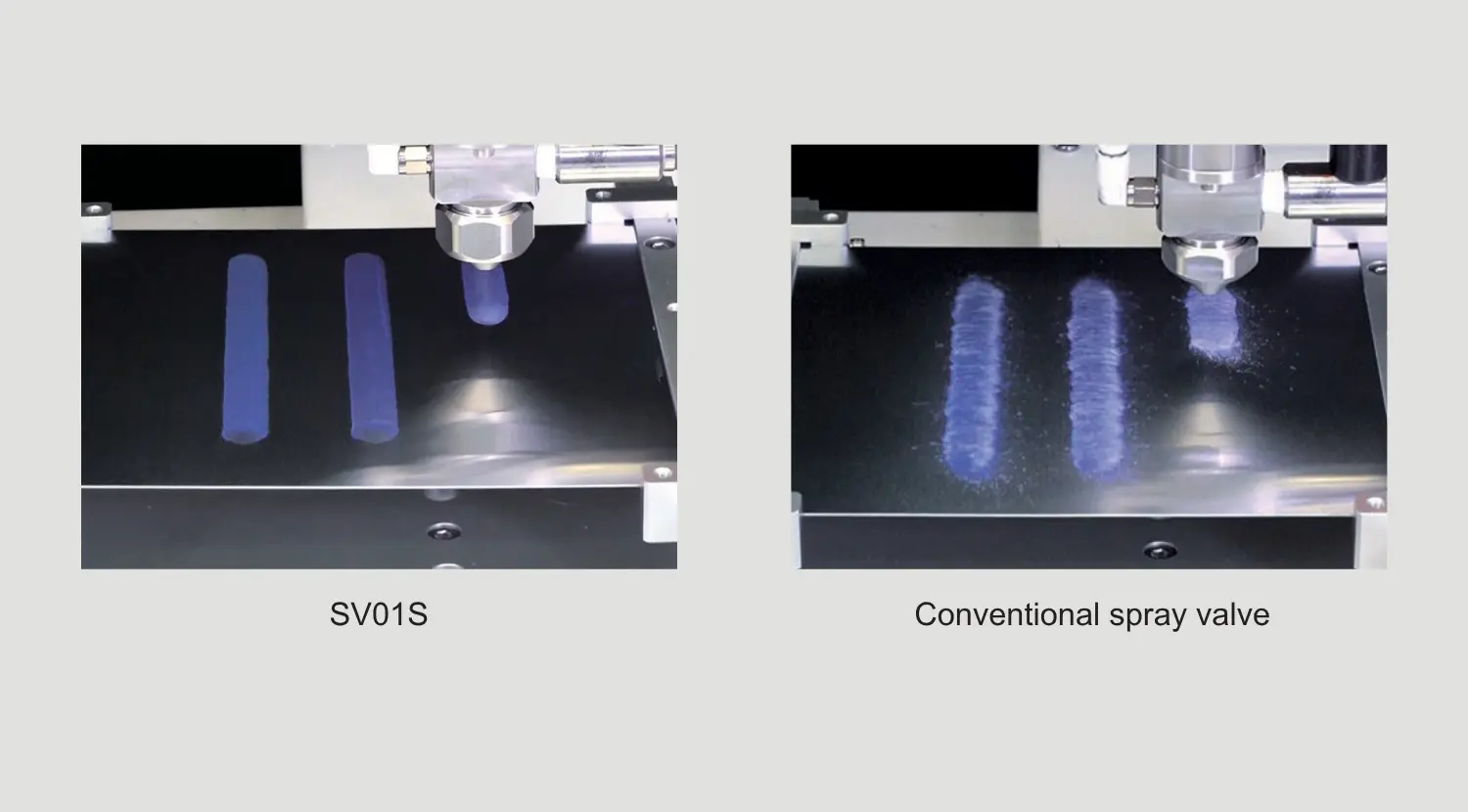

Precision spray valve for high-viscosity materials up to 30,000 mPa·s, ensuring clean, non-contact coating without splattering from San-Ei Tech.

Model: SV01S

Technical Information

Model SV01S
Size φ26.9mm (Fluid body) x 105mm length
Weight 312g
Air cylinder body SUS303
Piston needle SUS303
Needle packing SUS303, Teflon®
Fluid body SUS303
Nozzle / air cap SUS303
Fluid inlet thread 1/8NPT female
Valve operating air inlet thread M5 x 0.8 female
Nozzle air inlet thread M5 x 0.8 female
Mounting M6 x 1 tap hole
Valve operating air pressure  0.4～0.62MPa
Maximum nozzle air pressure  0.5MPa
Maximum fluid pressure  0.7MPa
