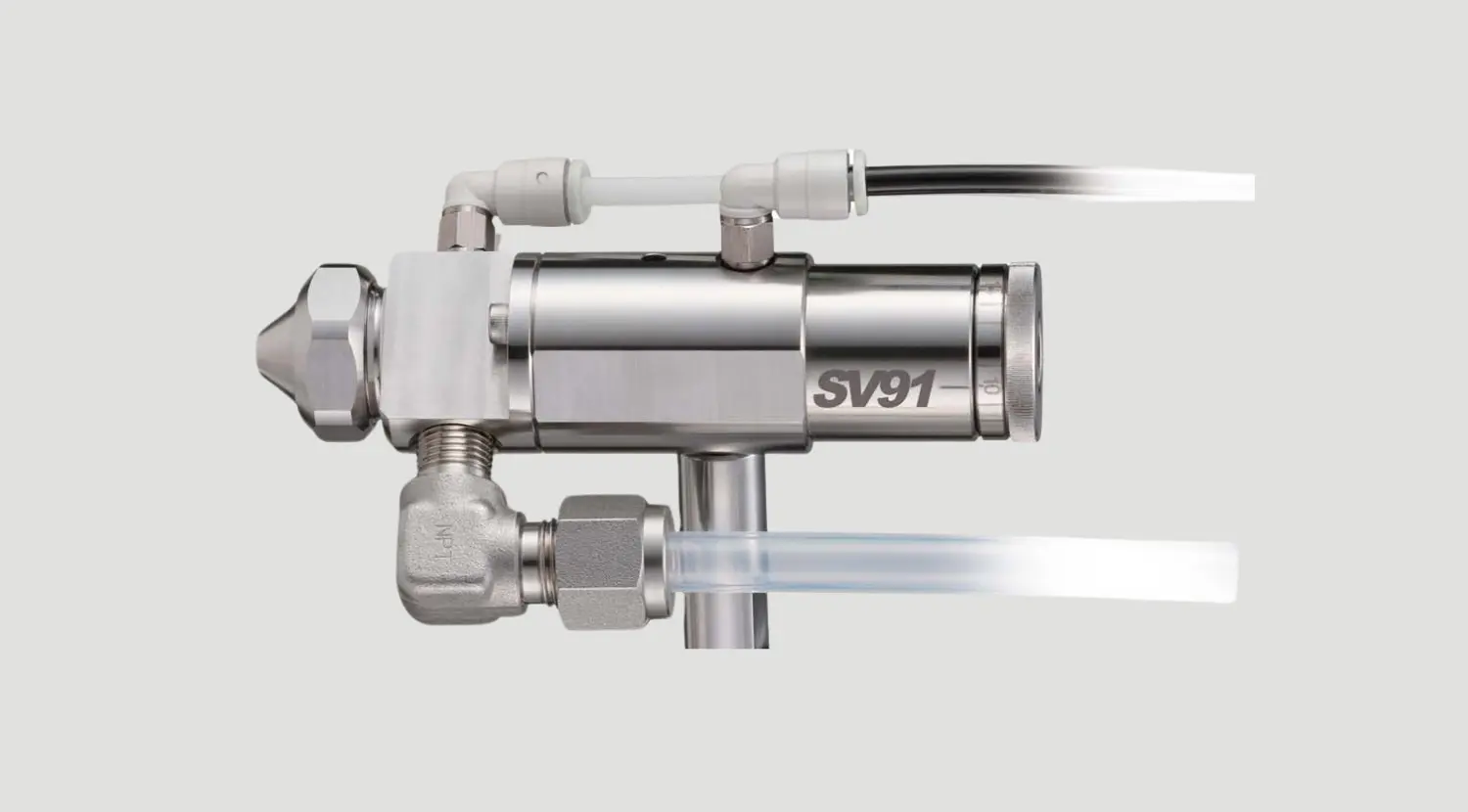

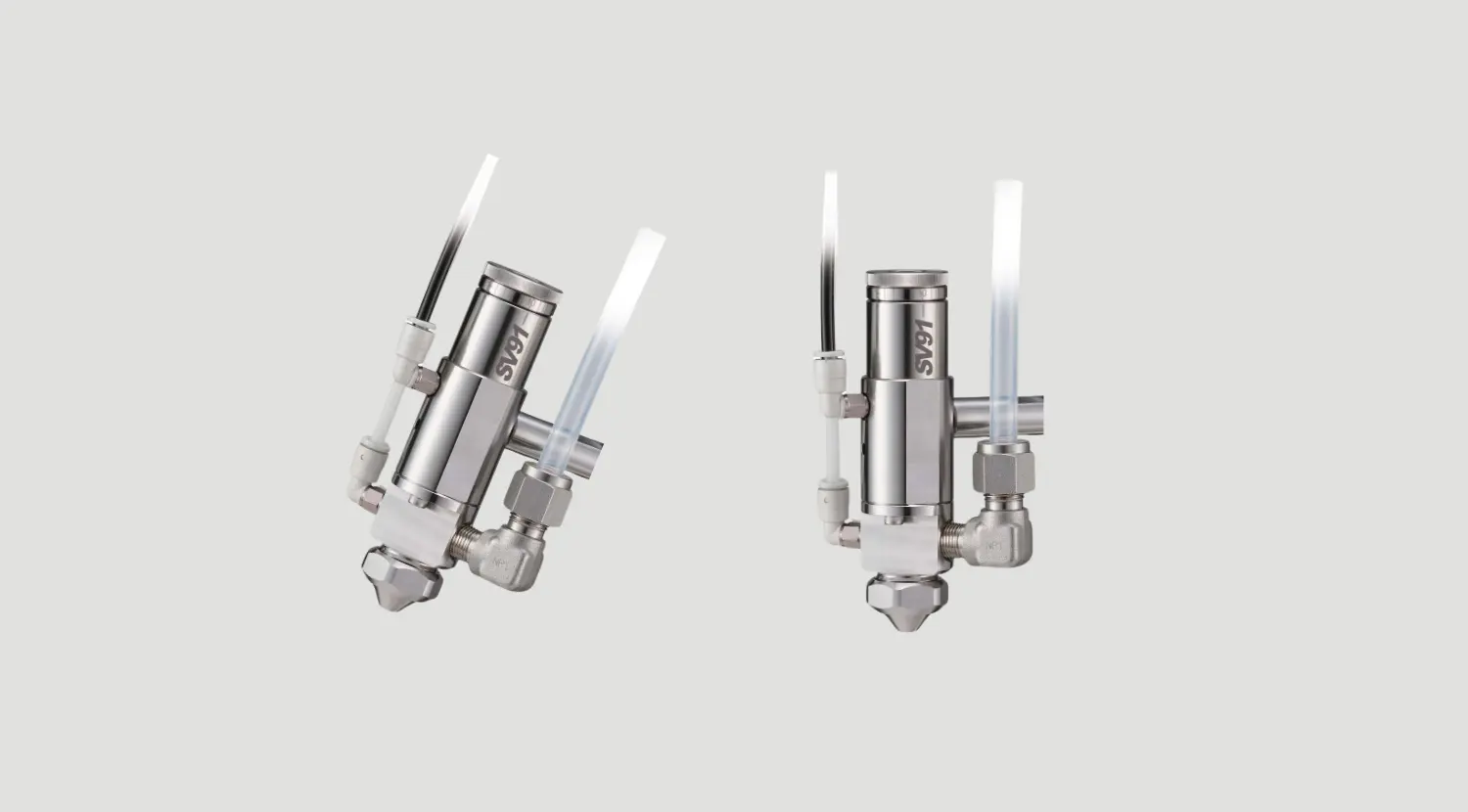

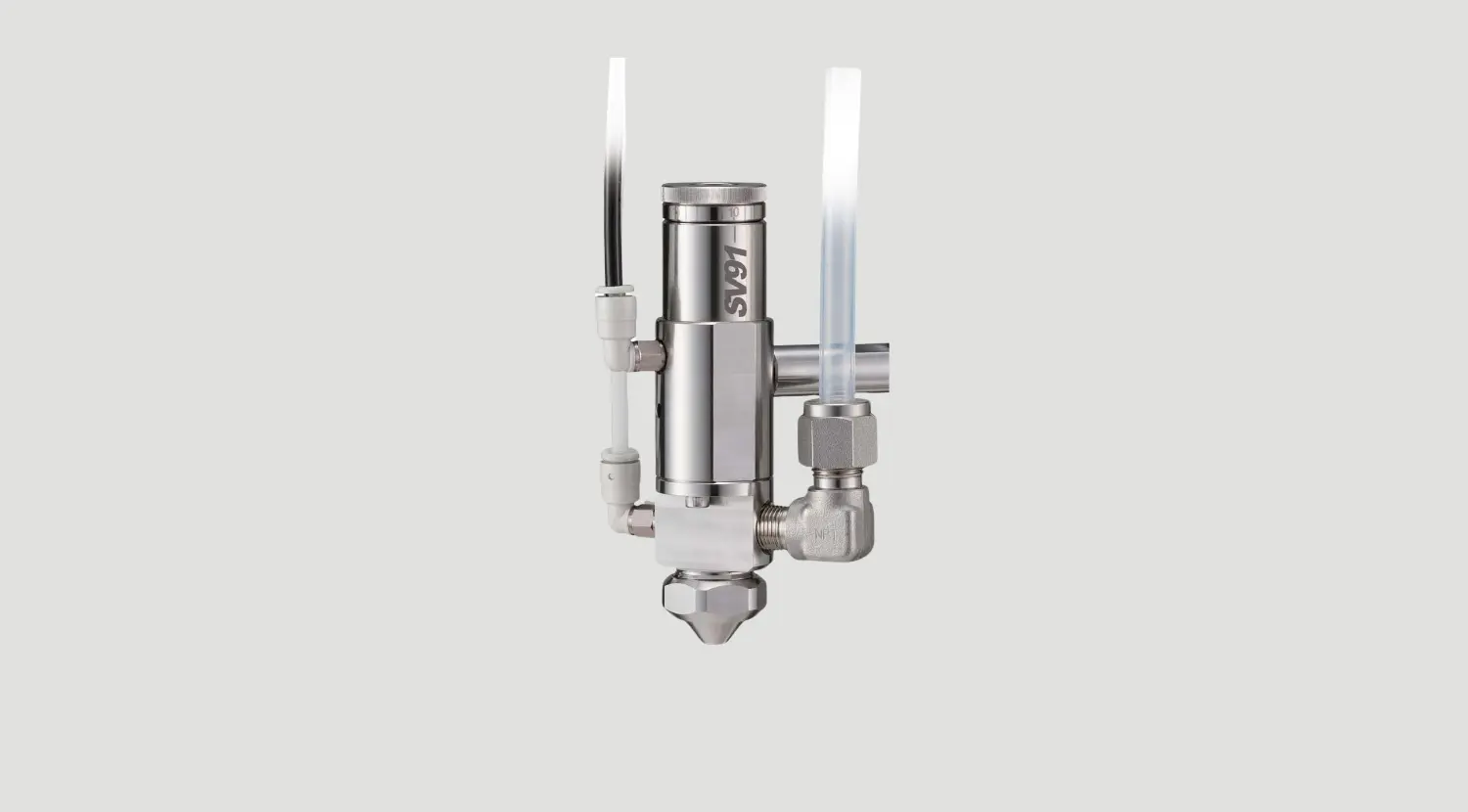

SPRAY VALVE SV91 SAN-EI TECH

High-precision spray valve for consistent, clean, and clog-free coating with low-pressure air, from San-Ei Tech

Model: SV91

Technical Information

Model SV91
Size φ26.9mm (Fluid body) x 105mm length
Weight 294g
Air cylinder body SUS303
Fluid body SUS303
Air cap SUS303
Needle, nozzle SUS303
Needle packing Teflon®
Fluid inlet thread 1/8NPT female
Valve operating air inlet thread M5×0.8 female
Mounting M6 x 1 tap hole
Valve operating air pressure 0.4～0.62MPa
Maximum nozzle air pressure 0.2MPa (regulated)
Maximum fluid pressure 0.7MPa

Spray Area Coverage

Nozzle dia Pattern Nozzle distance from surface
 25.4mm 50.8mm 76.2mm 152.4mm
1.17mm round A 6.3mm 12.7mm 19.0mm 38.1mm
0.70mm round A 5.0mm 10.1mm 15.2mm 30.4mm
 0.40mm round A 4.3mm 8.6mm 12.7mm 25.4mm
